Product Summary
The SI7450DP is an N-Channel (D-S) MOSFET. The applications of the SI7450DP include Primary Side Switch for High Density DC/DC, Telecom/Server 48-V DC/DC, Industrial and 42-V Automotive.
Parametrics
SI7450DP absolute maximum ratings: (1)Drain-Source Voltage, VDS: 200V; (2)Gate-Source Voltage, VGS: ±20V; (3)Continuous Drain Current (TJ = 150℃)a, TA = 25℃, ID: 5.3A; TA = 70℃, ID: 4.3A; (4)Pulsed Drain Current, IDM: 40 A; (5)Avalanche Current, IAS: 15A; (6)Continuous Source Current (Diode Conduction)a, IS: 4.3A; (7)Maximum Power Dissipationa, TA = 25℃, PD: 5.2W; TA = 70℃, PD: 3.3W; (8)Operating Junction and Storage Temperature Range, TJ, Tstg: -55 to 150℃.
Features
SI7450DP features: (1)TrenchFET Power MOSFETS; (2)New Low Thermal Resistance PowerPAK; (3)Package with Low 1.07-mm Profile; (4)PWM Optimized for Fast Switching.

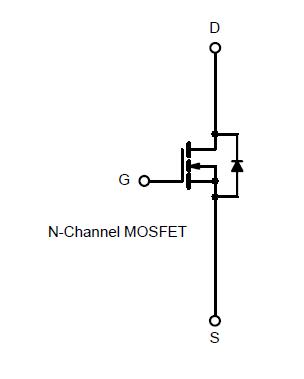

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() Si7450DP |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() SI7450DP-T1 |
![]() Vishay/Siliconix |
![]() MOSFET 200V 5.3A 5.2W |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() SI7450DP-T1-GE3 |
![]() Vishay/Siliconix |
![]() MOSFET 200V 5.3A 5.2W 80mohm @ 10V |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SI7450DP-T1-E3 |
![]() Vishay/Siliconix |
![]() MOSFET 200V 5.3A 5.2W |
![]() Data Sheet |
![]()
|
|
