Product Summary
The SDA30C264M2 is an 8-Bit Microcontroller ROMLESS.
Parametrics
SDA30C264M2 absolute maximum ratings: (1)Voltage on any pin with respect to ground, VS: -0.5 to 7V; (2)Power dissipation, Ptot: 1W; (3)Ambient temperature under bias, TA: 0 to 70℃; (4)Storage temperature, Tstg: -65 to 125℃.
Features
SDA30C264M2 features: (1)On-chip oscillator and clock circuits; (2)Binary or decimal arithmetic; (3)Signed-overflow detection and parity computation; (4)Integrated boolean pricessor for control applications; (5)Full depth stack for subroutine return linkage and data storage; (6)Four priority level, nested interrupt structure; (7)0.5 μS instruction cycle at 12 MHz internal clock rate; (8)8 data pointer registers.

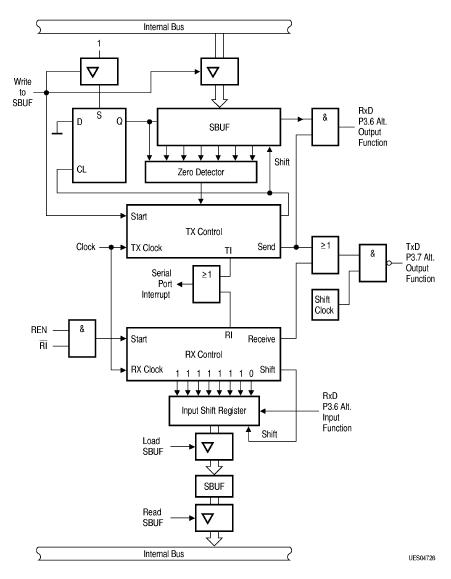

Diagrams
