Product Summary
The S5933QE is a PCI matchmaker. It is developed to break the PC data I/O bottleneck and clearly opens the door to increasing system speed and expansion capabilities. The PCI Local bus moves high speed peripherals from the I/O bus and places them closer to the system processor bus, providing faster data transfer between the processor and peripherals. The applications of S5933QE include High Speed Networking, Digital Video Applications, I/O Communications Ports, High Speed Data Input/Output, Multimedia Communications, Memory Interfaces, High Speed Data Acquisition, Data Encryption/Decryption, Intel i960 Interface, General Purpose PCI Interfacing.
Parametrics
S5933QE absolute maximum ratings: (1)On the condition of To PCI Spec 2.2, VDD Supply Voltage: min=4.75V, max=5.25V; (2)Vih High Level Input Voltage: min=2.0V; (3)Vih Low Level Input Voltage: min=-0.5V, max=0.8V; (4)On the condition of Iout=-2ma, Voh High Level Output Voltage: min=2.4V; (5)On the condition of Iout=3ma, 6ma, Vol Low Level Output Voltage: max=0.55V; (6)On the condition of Vin=2.7VDC, Iih High Input Leakage Current: max=70μA; (7)On the condition of Vin=0.5VDC, Iil Low Input Leakage Current: max=-70μA; (8)Cin Input Pin Capacitance: max=10PF; (9)CCLK CLK Pin Capacitance: min=5PF, max=12PF; (10)CIDSEL IDSEL Pin Capacitance: max=8PF.
Features
S5933QE features: (1)PCI 2.1 Compliant Master/Slave Device; (2)Full 132 Mbytes/sec Transfer Rate; (3)PCI Bus Operation DC to 33 Mhz; (4)8/16/32 Bit Add-On User Bus; (5)Four Definable Pass-Thru Regions; (6)Two 32 Byte FIFOs; (7)Sync/Async Add-On Bus Operation; (8)Mail Box Registers w/Byte Level Status; (9)Direct Mail Box Data Strobe/Interrupts; (10)Big/Little Endian Conversions; (11)Direct PCI & Add-On Interrupt Pins; (12)Boot Loading from nvRAM or Byte Wide; (13)Optional Expansion BIOS/POST Code; (14)160 Pin PQFP.

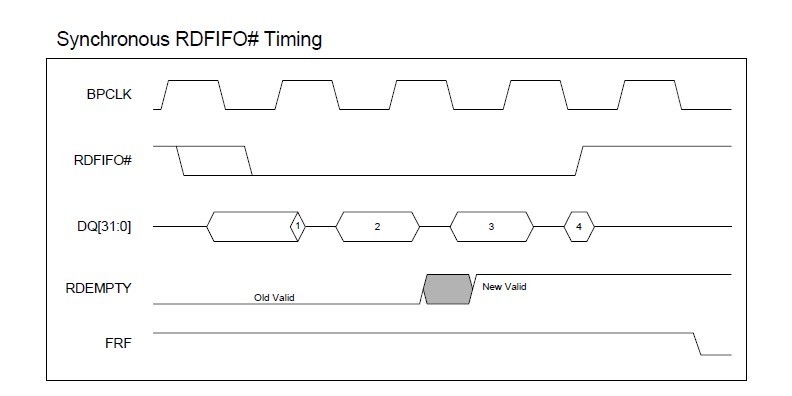

Diagrams
