Product Summary

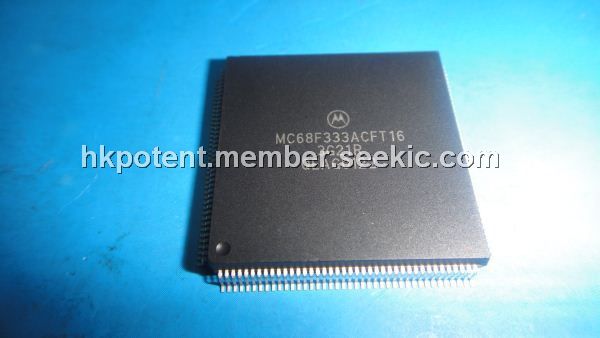

The MC68F333ACFT16 is a 32-bit highly-integrated microcontroller. The MC68F333ACFT16 combines high-performance data manipulation capabilities with powerful peripheral subsystems. Based on the powerful MC68020, the CPU32 instruction processing module provides enhanced system performance and also uses the extensive software base for the Motorola M68000 Family.
Parametrics
MC68F333ACFT16 absolute maximum ratings: (1)Supply Voltage: -0.3V to +6.5V; (2)Input Voltage: -0.3V to +6.5V; (3)Instantaneous Maximum Current Single pin limit: 25mA; (4)Operating Maximum Current Digital input disruptive current (VSS-0.3≤VIN≤VDD+0.3): -500 to 500μA; (5)Flash EEPROM Program/Erase Supply Voltage: (VDD-0.35) to +12.6V; (6)Operating Temperature Range: TL to TH -40℃ to +85℃; (7)Storage Temperature Range: -55℃ to +150℃.
Features
MC68F333ACFT16 features: (1)Single-Chip Integration Module; (2)CPU32; (3)Intelligent 16-bit time processor unit; (4)Analog-to-Digital Converter; (5)Queued Serial Module; (6)Two Flash EEPROM Memory Modules; (7)Standby RAM; (8)Standby RAM with TPU Emulation Capability.
Diagrams
 |
