Product Summary
The RSX051VA-30TR is a Shottky barrier diode. The application of the RSX051VA-30TR includes General rectification.
Parametrics
RSX051VA-30TR absolute maximum ratings: (1)Reverse voltage (repetitive peak), VRM: 30V; (2)Reverse voltage (DC), VR: 30V; (3)Average rectified forward current, IO: 0.5A; (4)Forward current surge peak (60Hz / 1cyc.), IFSM: 5A; (5)Junction temperature, Tj: 150°℃; (6)Storage temperature, Tstg: -40 to +150℃.
Features
RSX051VA-30TR features: (1)Small power mold type. (TUMD2 (1913) ); (2)High reliability; (3)Low VF / Low IR. (0.35V at 0.7A / 40μA at 30V).

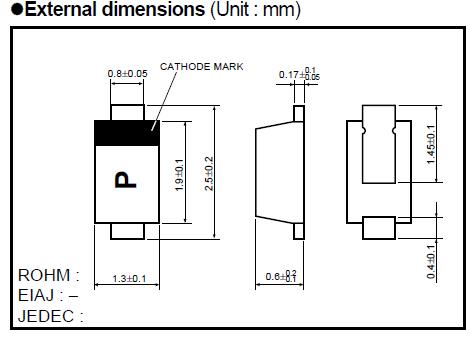

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RSX051VA-30TR |
ROHM Semiconductor |
Schottky (Diodes & Rectifiers) SCHOTTKY 30V 500MA TUMD2 |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
RSX051VA-30 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
RSX051VA-30TR |
ROHM Semiconductor |
Schottky (Diodes & Rectifiers) SCHOTTKY 30V 500MA TUMD2 |
Data Sheet |
|
|
||||||||||||
|
RSX071VA-30 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
RSX071VA-30TR |
ROHM Semiconductor |
Schottky (Diodes & Rectifiers) SCHOTTKY 30V 700MA TUMD2 |
Data Sheet |
|
|
||||||||||||
