Product Summary

The OP42GPZ is a JFET-input operational amplifier. The OP42GPZ offers a symmetric 58V/μs slew rate and is internally compensated for unity-gain operation. The OP42GPZ speed is achieved with a supply current of less than 6mA. Excellent radiation hardness characteristics make the OP42GPZ ideal for military and aerospace applications.

Parametrics

OP42GPZ absolute maximum ratings: (1)supply voltage: ±20V; (2)differential input voltage: ±20V; (3)input voltage: 40V; (4)output short-circuit duration: Indefined; (5)storage temperature range: -65 to 150℃; (6)lead temperature range: 300℃; (7)operating temperature range: -55 to 125℃; (8)junction temperature, Tj: -65 to 175℃.

Features

OP42GPZ features: (1) Slew rate: 50V/μS Min; (2) Settling Time: 1μs Max; (3) Gain Bandwidth product: 10MHz; (4) Common Mode rejection: 88dB Min; (5) Open loop gain: 500V/mV Min; (6) Offset voltage: 750μV Max; (7) Bias current: 200pA Max.

Diagrams

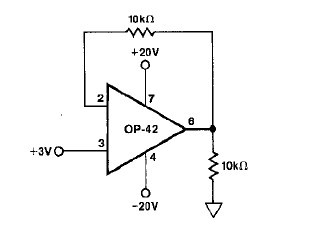

OP42GPZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

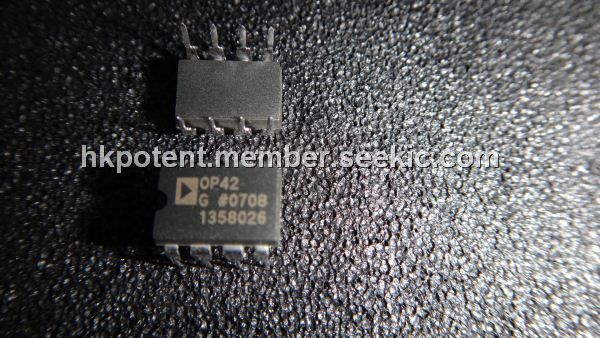

OP42GPZ
OP42GPZ

IC OPAMP JFET 10MHZ PREC 8DIP
Data Sheet
0-1: $3.29
1-10: $2.94
10-25: $2.65
25-100: $2.41
100-250: $2.18
250-500: $1.95
500-1000: $1.65
1000-2500: $1.57
