Product Summary

The OP15CZ is a Precision JFET-Input Operational Amplifier. The ADI-JFET input series of devices offer clear advantages over industry-generic devices and are superior in both cost and performance to many dielectrically-isolated and hybrid op amps. All devices offer offset voltages as low as 0.5 mV with TCVOS guaranteed to 5μV/℃. A unique input bias cancellation circuit reduces the IB by a factor 10 over conventional designs. In addition ADI specifies IB and IOS with the devices warmed up and operating at 25℃ ambient. The OP15CZ provides an excellent combination of high speed and low input offset voltage. In addition, the OP15CZ offers the speed of the 156A op amp with the power dissipation of a 155A. The combination of a low input offset voltage of 500mV, slew rate of 13V/ms, and settling time of 1,200 ns to 0.1% makes the OP15CZ an op amp of both precision and speed. The additional features of low supply current coupled with an input bias current makes the OP15CZ ideal for a wide range of applications.

Parametrics

OP15CZ absolute maximum ratings: (1)Supply Voltage All Devices Except C, G (Packaged) and GR Grades: ±22 V; (2)C, G (Packaged) and GR Grades: ±18 V; (3)Operating Temperature A Grade: –55℃ to +125℃; (4)E, F Grades: 0℃ to 70℃; (5)G Grade: –40℃ to +85℃; (6)Maximum Junction Temperature: 150℃; (7)Differential Input Voltage All Devices Except C, G Grades: ±40V; (8)C, G Grades:±30 V; (9)Input Voltage2 All Devices Except C, G Grades: ±20 V; (10)C, G Grades:±16 V; (11)Input Voltage:±20 V; (12)Output Short-Circuit Duration: Indefinite; (13)Storage Temperature Range: –65℃ to +150℃; (14)Lead Temperature Range (Soldering, 60 sec): 300℃.

Features

OP15CZ features: (1)Significant Performance Advantages over LF155 and LF157 Devices; (2)Low Input Offset Voltages: 500μV Max; (3)Low Input Offset Voltage Drift: 2.0μV/℃; (4)Minimum Slew Rate Guaranteed on All Models; (5)Temperature-Compensated Input Bias Currents; (6)Bias Current Specified Warmed-Up Over Temperature; (7)Internal Compensation; (8)Low Input Noise Current: 0.01pA/√ ̄Hz; (9)High Common-Mode Rejection Ratio: 100dB; (10) Models with MIL-STD 883 Processing Available; (11)156 Speed with 155 Dissipation: 80mW Typ; (12) Wide Bandwidth: 6MHz; (13)High Slew Rate: 13V/μs; (14)Fast Settling to ±0.1%: 1,200 ns.

Diagrams

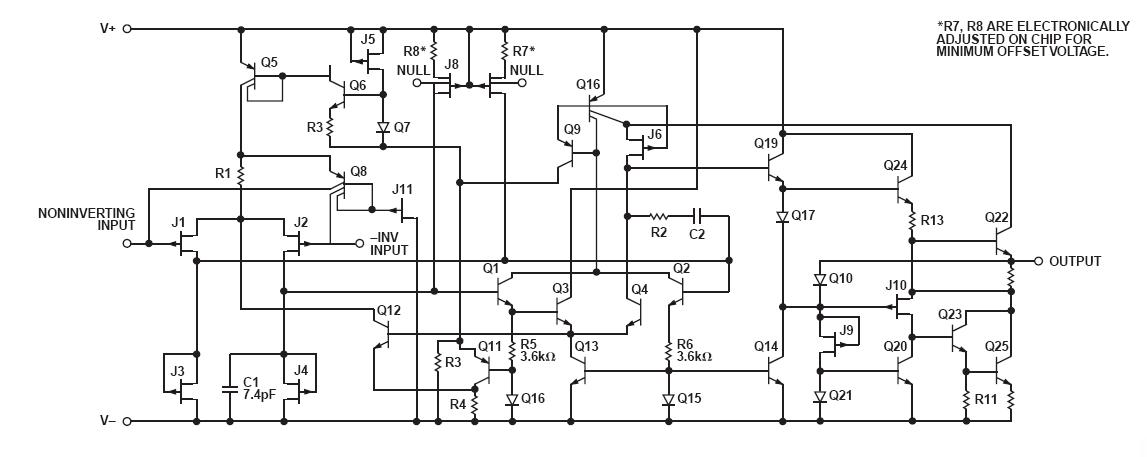

OP15CZ block diagram
