Product Summary

The MM74C941N is an octal buffer and line driver. The MM74C941N is monolithic complementary MOS (CMOS) integrated circuits with TRI-STATE outputs. These outputs have been specially designed to drive highly capacitive loads such as bus-oriented systems. The MM74C941N has a fan-out of 6 low power Schottky loads. When VCC e 5V, inputs can accept true TTL high and low logic levels.

Parametrics

MM74C941N absolute maximum ratings: (1)Voltage at Any Pin: 0.3V to VCC +0.3V; (2)Operating Temperature Range (TA): -40℃ to a85℃; (3)Storage Temperature Range (TS): -65℃ to 150℃; (4)Power Dissipation (PD) Dual-In-Line: 700mW; (5)Small Outline: 500mW; (6)Operating VCC Range: 3V to 15V; (7)VCC: 18V; (8)Lead Temperature (TL) (Soldering, 10 seconds): 260℃.

Features

MM74C941N features: (1)Wide supply voltage range (3V to 15V); (2)Low power consumption; (3)TTL compatibility (Improved on the inputs); (4)High capacitive load; (5)TRI-STATE outputs; (6)Input protection; (7)20-pin dual-in-line package; (8)High output drive.

Diagrams

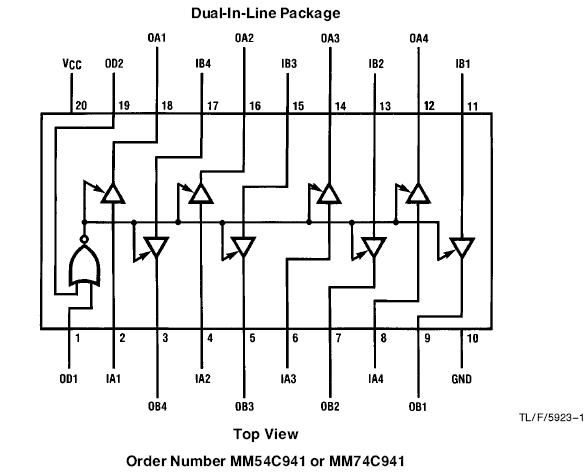

MM74C941N block diagram
