Product Summary
The A1280XL-1PQ160C is an Integrator Series FPGA. The A1280XL-1PQ160C is the first programmable logic device optimized for high-speed system logic integration. Based on Actel’s proprietary antifuse technology and 0.6-micron double metal CMOS process, Integrator Series devices offer a fine-grained, register-rich architecture with embedded dual-port SRAM and wide-decode circuitry.
Parametrics
A1280XL-1PQ160C absolute maximum ratings: (1)VCC DC Supply Voltage: –0.5V to +7.0V; (2)VI2 Input Voltage: –0.5 to VCC +0.5V; (3)VO Output Voltage: –0.5 to VCC +0.5V; (4)TSTG Storage Temperature:–65℃ to +150℃.
Features
A1280XL-1PQ160C features: (1)2,500 to 30,000 Logic Gates; (2)Up to 3Kbits Configurable Dual-Port SRAM; (3)Fast Wide-Decode Circuitry; (4)Up to 250 User-Programmable I/O Pins; (5)225 MHz Performance; (6)5 ns Dual-Port SRAM Access; (7)100 MHz FIFOs; (8)7.5 ns 35-Bit Address Decode; (9)Synthesis-Friendly Architecture Supports ASIC Design Methodologies; (10)95?00% Device Utilization using Automatic Place-and-Route Tools; (11)Deterministic, User-Controllable Timing Via Timing Driven Software Tools with Up To 100% Pin Fixing; (12)IEEE Standard 1149.1 (JTAG) Boundary Scan Testing.

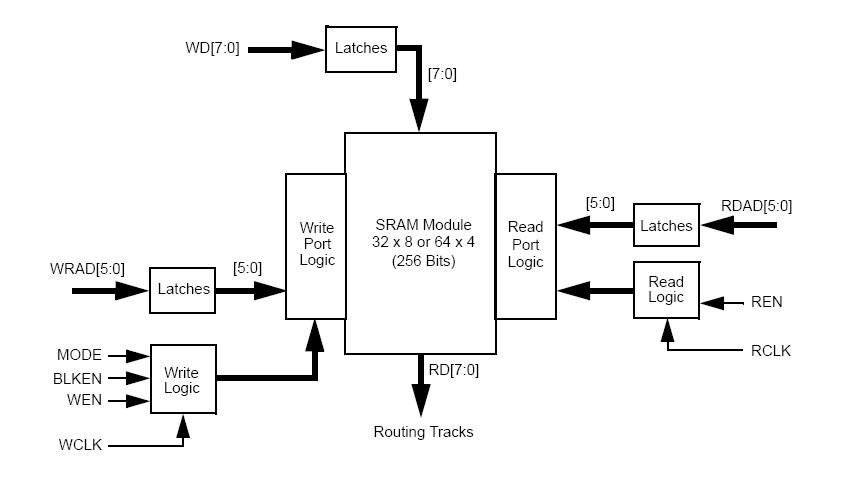

Diagrams
 |
