Product Summary

The MM54HC154J is a 4-to-16 Line Decoder. The MM54HC154J utilizes advanced silicon-gate CMOS technology, and is well suited to memory address decoding or data routing applications. The MM54HC154J possesses high noise immunity, and low power consumption of CMOS with speeds similar to low power Schottky TTL circuits.

Parametrics

MM54HC154J absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC+1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC+0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD) (Note 3): 600mW; (9)S.O. Package only: 500mW; (10)Lead Temp. (TL) (Soldering 10 seconds): 260℃.

Features

MM54HC154J features: (1)Typical propagation delay: 21 ns; (2)Power supply quiescent current: 80mA (74HC); (3)Wide power supply voltage range: 2±6V; (4)Low input current: 1μA maximum.

Diagrams

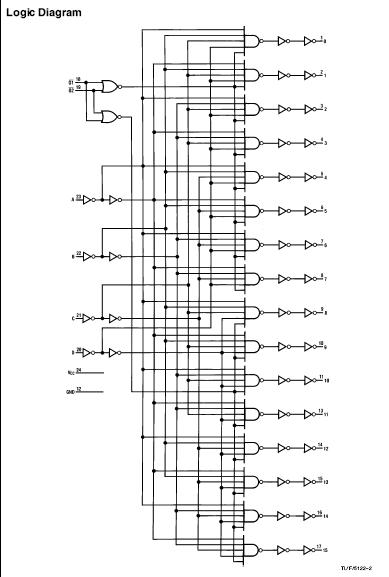

MM54HC154J block diagram
