M30625FGPGP

M30625FGPGP, single-chip, 16-bit, CMOS microcomputer, 100-QFP, 6.5V, 10mA, Renesas Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
101 ~ 500 :	0.80 / Piece
501 ~ 1000 :	0.65 / Piece

PartNumber:: M30625FGPGP

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 04+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-24

From Other Seller

Part Number:M30625FGPGP
US $0.65 - 1.00
Quantity:

piece

Product Summary

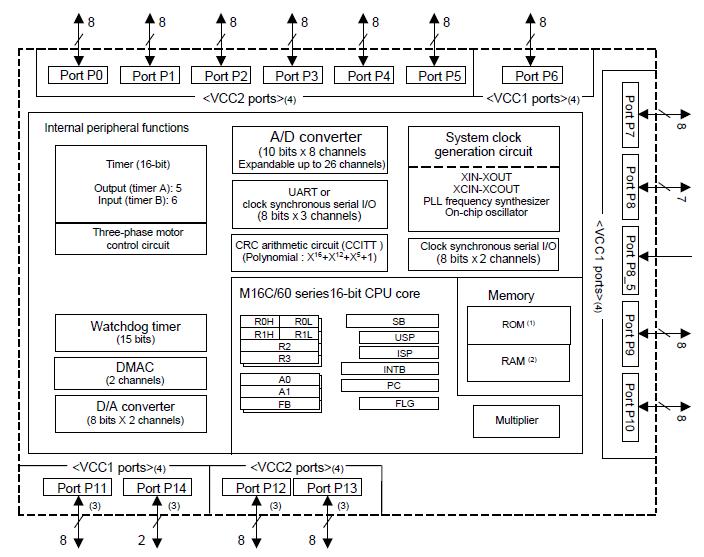

The M30625FGPGP is a 16-bit CMOS microcomputer. The M30625FGPGP is built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 80-pin, 100-pin and 128-pin plastic molded QFP. The M30625FGPGP operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, it is capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires highspeed arithmetic/logic operations. The applications of the M30625FGPGP include Audio, cameras, television, home appliance, office/communications/portable/industrial equipment, automobile, etc.

Parametrics

M30625FGPGP absolute maximum ratings: (1)Supply Voltage, VCC1=AVCC, VCC1, VCC2: -0.3 to 6.5 V; (2)Supply Voltage, VCC2, VCC2: -0.3 to VCC1+0.1 V; (3)Analog Supply Voltage, VCC1=AVCC, AVCC: -0.3 to 6.5 V; (4)Input Voltage, VI: -0.3 to VCC+0.3V; (5)Output Voltage, VO: -0.3 to VCC+0.3V; (6)Power Dissipation, -40℃<Topr≤85℃, Pd: 300 mW; (7)Operating Ambient Temperature, When the Microcomputer is Operating Topr: -20 to 85 / -40 to 85℃; Flash Program Erase, Topr: 0 to 60℃; (8)Storage Temperature, Tstg: -65 to 150℃.

Features

M30625FGPGP features: (1)Resolution: 8 Bits; (2)Absolute Accuracy: 1.0 %; (3)Setup Time, tSU: 3 μs; (4)Output Resistance, RO: 4 to 20 kΩ; (5)Reference Power Supply Input Current, IVREF: 1.5 mA.
