Product Summary
The LM107H/883 is a general purpose operational amplifier, featuring low bias current and the ability to operate with high input differential voltages up to 30V. Unlike many FET input amplifiers, the output of it dose not reverse if the common mode range is exceeded.
Parametrics
LM107H/883 absolute maximum ratings: (1)Input Offset Voltage: -2 mV min and 2 mV max at Vcm=±15V; (2)Input Offset Current: -10 mV min and 10 mV max at Vcm=±15V; (3)Input Bias Current: 1 nA min and 75 nA max at Vcm = +15V; (4)Input Bias Current: 1 nA min and 100 nA max at Vcm = +15V; (5)Supply Current: 3 mA; (6)Short Circuit Current: 7 mA min and 45 mA max.
Features
LM107H/883 features: (1)30 V differential input range; (2)75 nA input bias current; (3)wide common mode voltage range.

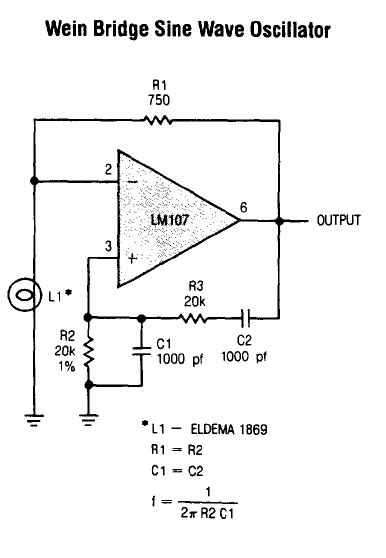

Diagrams
