Product Summary

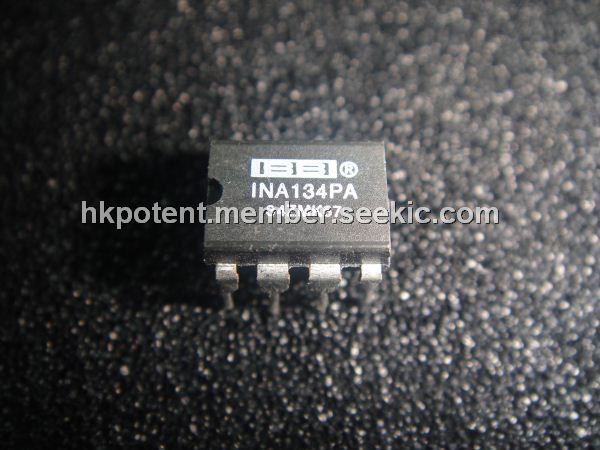

The INA134PA is an audio differential line receiver. It consists of high performance op amps with on-chip precision resistors. The INA134PA is fully specified for high performance audio applications and have excellent ac specifications, including low distortion (0.0005% at 1 kHz) and high slew rate (14V/ms), assuring good dynamic response. In addition, wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The dual version features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded. The applications of the INA134PA include audio differential line receiver, summing amplifier, unity-gain inverting amplifier, pseudo ground generator, instrumentation building block, current shunt monitor, voltage-controlled current source, ground loop eliminator.

Parametrics

INA134PA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 40V; (2)Input Voltage Range:±80V; (3)Output Short-Circuit (to ground)(2): Continuous; (4)Operating Temperature:–55℃ to +125℃; (5)Storage Temperature:–55℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA134PA features: (1)single and dual versions; (2)low distortion: 0.0005% at f = 1kHz; (3)high slew rate: 14V/ms; (4)fast settling time: 3ms to 0.01%; (5)wide supply range: ±4V to ±18V; (6)low quiescent current: 2.9mA max; (7)high CMRR: 90dB; (8)fixed gain = 0dB (1V/V); (9)packages—single: 8-pin DIP, SO-8 dual: 14-pin DIP, SO-14.

Diagrams

INA134PA Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
INA134PA
INA134PA
Texas Instruments
Audio Transmitters, Receivers, Transceivers Audio Diff Line Receivers 0dB (G=1)
Data Sheet
0-1: $1.55
1-25: $1.42
25-100: $1.13
100-250: $0.98
