Product Summary
The IDT72V245L15TFGI is a 3.3 VOLT CMOS SyncFIFO. It is designed to run off a 3.3V supply for exceptionally low power consumption. The IDT72V245L15TFGI is a very high-speed, low-power First-In, First-Out (FIFO) memory with clocked read and write controls. The IDT72V245L15TFGI is applicable for a wide variety of data buffering needs, such as optical disk controllers, Local Area Networks (LANs), and interprocessor communication.
Parametrics
IDT72V245L15TFGI absolute maximum ratings: (1)VTERM(2) Terminal Voltage with respect to GND: –0.5 to +5V; (2)TSTG Storage Temperature:–55 to +125℃; (3) IOUT DC Output Current –50 to +50mA.
Features
IDT72V245L15TFGI features: (1)2,048 x 18-bit organization array; (2)4,096 x 18-bit organization array (IDT72V245); (3)10 ns read/write cycle time; (4)5V input tolerant; (5)IDT Standard or First Word Fall Through timing; (6)Single or double register-buffered Empty and Full flags; (7)Easily expandable in depth and width; (8)Asynchronous or coincident Read and Write Clocks; (9)Asynchronous or synchronous programmable Almost-Empty and Almost-Full flags with default settings; (10)Half-Full flag capability; (11)Output enable puts output data bus in high-impedance state; (12)High-performance submicron CMOS technology; (13)Available in a 64-lead thin quad flat-pack (TQFP/STQFP); (14)Industrial temperature range (–40℃ to +85℃) is available.

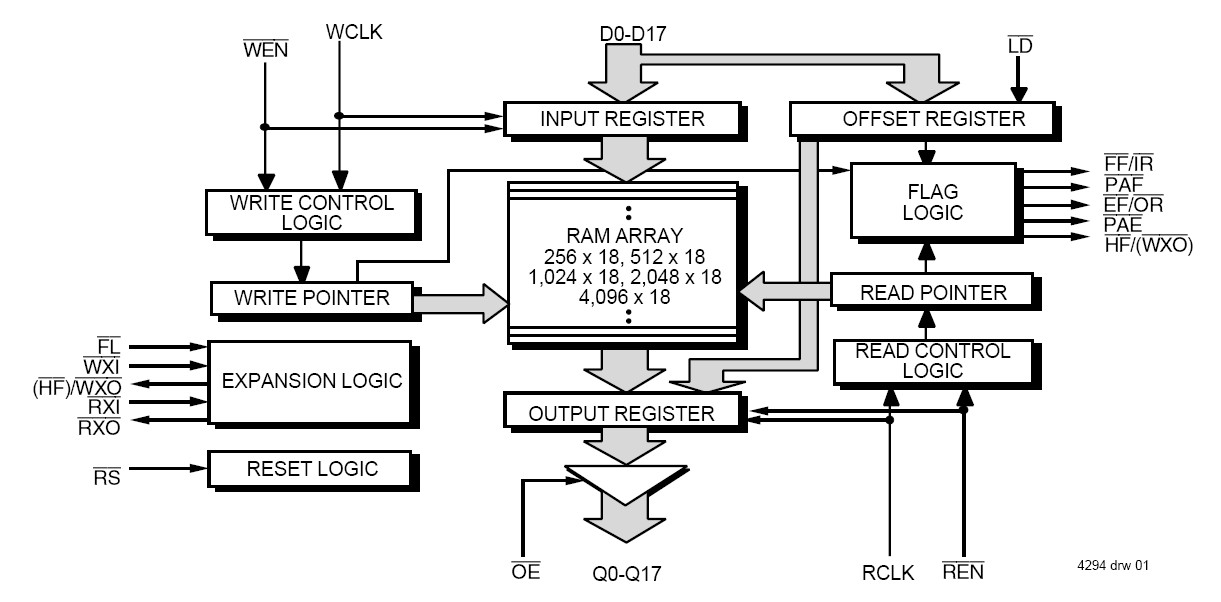

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDT72V245L15TFGI |
|
IC FIFO SYNC 4096X18 15NS 64QFP |
Data Sheet |
|
|
||||||
