Product Summary

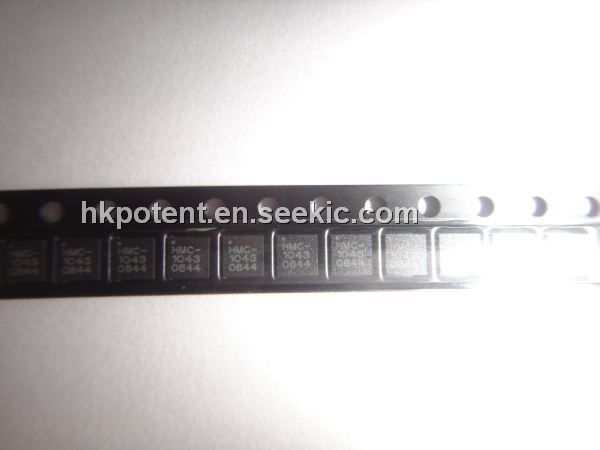

The HMC1043 is a miniature three-axis surface mount sensor array designed for low field magnetic sensing. By adding the HMC1043 with supporting signal processing, a cost effective and space-efficient three-axis magnetometer or compassing solution is enabled. This ultra-compact, low cost solution is easy to assemble for high volume OEM designs. Applications for the HMC1043 include Compassing, Navigation Systems, Magnetometry, and Current Sensing.
Parametrics
HMC1043 absolute maximum ratings: (1)Supply Vbridge referenced to GND: 1.8 to 10V; (2)Resistance Bridge current = 10mA per bridge: 800 to 1500ohms; (3)Resistance measured Vb to Vss: 265 to 500ohms; (4)Operating Temperature Ambient: -40 to 125℃; (5)Storage Temperature Ambient, unbiased: -55 to 150℃; (6)Humidity Tested at 85℃: 85%; (7)Bandwidth Magnetic signal (lower limit = DC): 5MHz.
Features
HMC1043 features: (1)Low Height Magnetic Sensors (1.40mm); (2)Surface Mount Three-Axis Sensors; (3)Low Voltage Operations (2.0V); (4)Low Cost; (5)Available in Tape & Reel Packaging; (6)4-Element Wheatstone Bridges; (7)Wide Magnetic Field Range (+/-6 Oe); (8)Patented Offset and Set/Reset Straps; (9)Lead Free Package Construction.

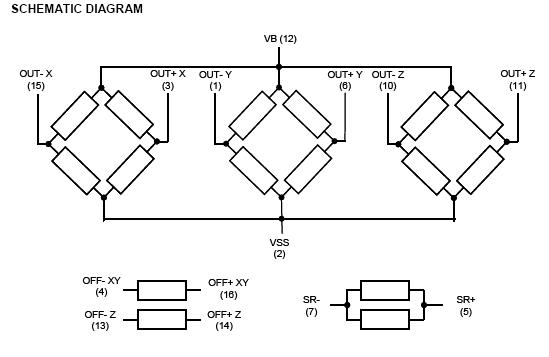

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HMC1043 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
HMC1043-DEMO |
|
DEMONSTRATION BOARD FOR HMC1043 |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
HMC1043-TR |
|
3-AXIS MAG SENSOR 16 PIN LPCC |
Data Sheet |
|
|
||||||||||||||||||
