Product Summary
The CS5368-CQZis a 114dB, 192 kHz, 8-Channel A/D Converter for digital audio systems. The CS5368-CQZ performs sampling, analog-to-digital conversion and anti-alias filtering, generating 24-bit values for all 8-channel inputs in serial form at sample rates up to 216 kHz per channel. The CS5368-CQZ uses a 5th-order, multi-bit delta sigma modulator followed by low latency digital filtering and decimation, which removes the need for an external anti-aliasing filter. The ADC uses a differential input architecture which provides excellent noise rejection.
Parametrics
CS5368-CQZ absolute maximum ratings: (1)Positive Analog: +6V; (2)Positive Crystal: +6V; (3)Positive Digital: +6V; (4)Positive Serial Logic: +6V; (5)Positive Control Logic: +6V; (6)Input Current Iin: ±10mA; (7)Analog Input Voltage VIN: -0.3 to VA+0.3 VV; (8)Digital Input Voltage VIND: -0.3 to VL+0.3V; (9)Ambient Operating Temperature (Power Applied) TA: -50℃ to +95℃; (10)Storage Temperature Tstg: -65℃ to +150℃.
Features
CS5368-CQZ features: (1)Advanced Multi-bit Delta-Sigma Architecture; (2)24-Bit Conversion; (3)114 dB Dynamic Range; (4)-105 dB THD+N; (5)Supports Audio Sample Rates up to 216 kHz; (6)Selectable Audio Interface Formats; (7)Left-Justified, I2S, TDM; (8)8-channel TDM Interface Formats; (9)Low Latency Digital Filter; (10)Less than 600 mW Power Consumption; (11)On-Chip Oscillator Driver; (12)Operation as System Clock Master or Slave; (13)Differential Analog Architecture; (14)Separate 1.8 V to 5 V Logic Supplie s for Control and Serial Ports; (15)High-Pass Filter for DC Offset Calibration; (16)Overflow Detection; (17)Pin-Compatible with the 4-Channel CS5364 and 6-Channel CS5366.

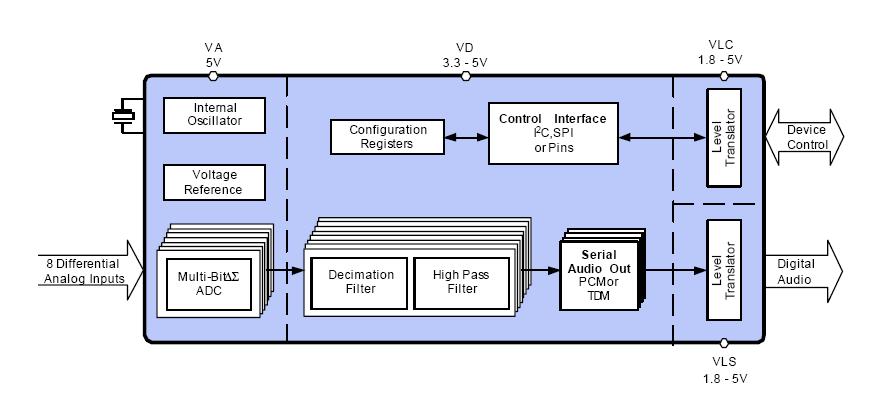

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS5368-CQZ |
Cirrus Logic |
Audio A/D Converter ICs 114dB 192kHz 8-Ch ADC w/TDM Interface |
Data Sheet |
|
|
||||||||||||
|
CS5368-CQZR |
Cirrus Logic |
Audio A/D Converter ICs IC 114dB 192kHz 8ch ADC w/TDM Intrfc |
Data Sheet |
|
|
||||||||||||
