Product Summary

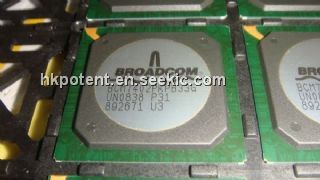

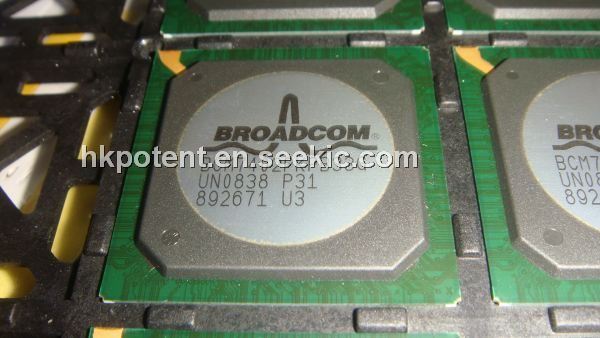

The BCM7402PKPB33G is a high-definition satellite, cable, and IP set-top box non-DVR solution offering integrated AVC (H.264/MPEG-4 Part 10), MPEG-2, and VC-1 video decoding technology. The BCM7402PKPB33G combines a data transport processor, high-definition AVC/MPEG-2/VC-1 video decoder, advanced-audio decoder, 2D graphics processing, high-quality video scaling and motion adaptive deinterlacing, six video DACs, stereo high-fidelity audio DACs, a MIPS32/ MIPS16e. class CPU, and a peripheral control unit providing a variety of set-top box control functions.
Features
BCM7402PKPB33G features: (1)Advanced AVC/MPEG-2/VC-1 decoder; (2)Advanced audio processor; (3)Advanced 2D-effects graphic engine; (4)Digital noise reduction (DNR); (5)Motion-adaptive deinterlacer with reverse 3:2/2:2 pull down; (6)Letterbox detection; (7)Open Cable ready with on-chip MPOD support; (8)300-MHz MIPS32 16e class processor; (9)64-bit DDR DRAM controller; (10)HD analog video encoder with simultaneous SD outputs; (11)HDMI 1.1/DVI 1.0 Mac and PHY with HDCP 1.1; (12)Broadcom security processor; (13)AES/1DES/3DES/CSS/CPRM/DTCP copy protection; (14)MPEG-2/DIRECTV/DVB/ARIB data transport demux with 1DES/3DES/DVB/Multi2/AES descramblers; (15)V.92-capable soft modem with integrated SiLab Si305x system; (16)side device; (17)3.3V 33-MHz PCI 2.2; (18)Dual USB 2.0 host controller with dual-port transceiver; (19)Ethernet Mac and PHY; (20)UHF remote control receiver; (21)Dual smart card support.

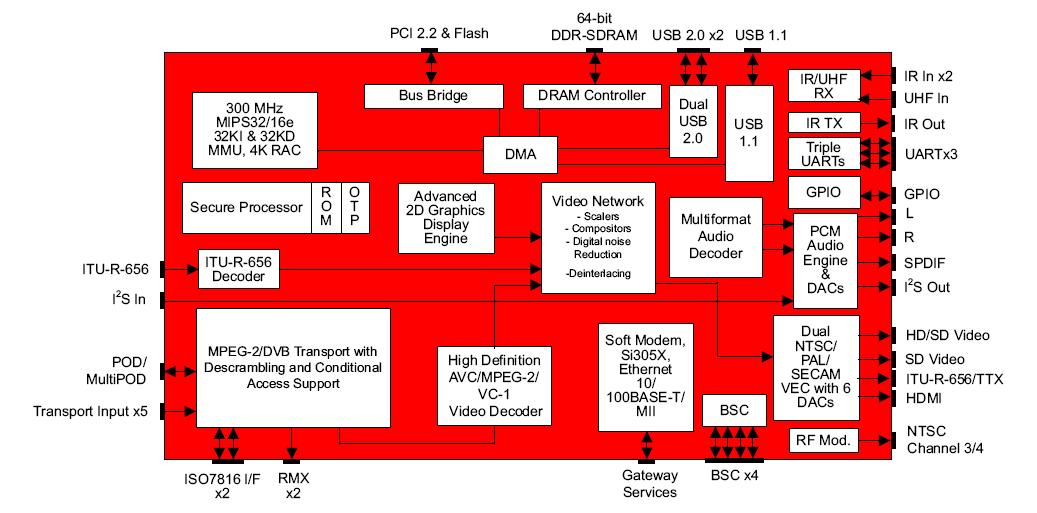

Diagrams
