AT91M55800A-33AU

Product Summary

The AT91M55800A-33AU is an AT91 16/32-bit microcontroller family, which is based on the ARM7TDMI processor core. This processor has a high-performance 32-bit RISC architecture with a high-density 16-bit instruction set and very low power consumption. The AT91M55800A-33AU is manufactured using Atmel’s high-density CMOS technology. By combining the ARM7TDMI processor core with an on-chip SRAM, a wide range of peripheral functions, analog interfaces and low-power oscillators on a monolithic chip, the AT91M55800A-33AU is a powerful microcontroller that provides a highly-flexible and cost-effective solution to many ultra low-power applications.

Parametrics

AT91M55800A-33AU general specifications: (1)RAM Size: 8K x 8; (2)Number of I /O: 58; (3)Package / Case: 176-LQFP; (4)Speed: 33MHz; (5)Oscillator Type: Internal; (6)Packaging: Tray; (7)Program Memory Type: ROM less; (8)Core Processor: ARM7; (9)Data Converters: A/D 8x10b; D/A 2x10b; (10)Core Size: 16/32-Bit; (11)Operating Temperature: -40℃ to 85℃; (12)Connectivity: EBI/EMI, SPI, UART/USART; (13) Peripherals: POR, WDT; (14) Voltage Supply (Vcc/Vdd): 2.7 V to 3.6 V.

Features

AT91M55800A-33AU features: (1)Programmable Watchdog Timer; (2)8-channel 10-bit ADC; (3)2-channel 10-bit DAC; (4)Clock Generator with On-chip Main Oscillator and PLL for Multiplication: 3 to 20 MHz Frequency Range Main Oscillator; (5)Real-time Clock with On-chip 32 kHz Oscillator: Battery Backup Operation and External Alarm; (6)8-channel Peripheral Data Controller for USARTs and SPIs; (7)Advanced Power Management Controller (APMC): Normal, Wait, Slow, Standby and Power-down modes; (8)IEEE 1149.1 JTAG Boundary-scan on all Digital Pins; (9)Fully Static Operation: 0 Hz to 33 MHz; (10)2.7V to 3.6V Core Operating Range; (11)2.7V to 5.5V I/O Operating Range; (12)2.7V to 3.6V Analog Operating Range; (13)1.8V to 3.6V Backup Battery Operating Range; (14)2.7V to 3.6V Oscillator and PLL Operating Range; (15)-40℃ to +85℃ Temperature Range; (16)Available in a 176-lead LQFP (Green) and a 176-ball BGA Package (RoHS-compliant); (17) High-performance 32-bit RISC Architecture; (18)High-density 16-bit Instruction Set; (19)Leader in MIPS/Watt; (20)Embedded ICE (In-Circuit Emulation); (21)8K Bytes Internal SRAM; (22)Fully-programmable External Bus Interface (EBI).

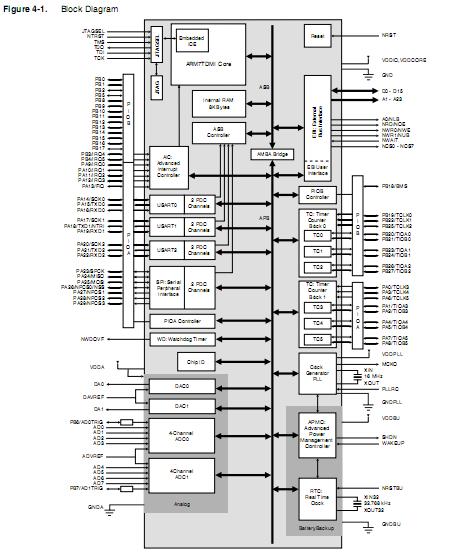

Diagrams
