AT49BV163D-70TU

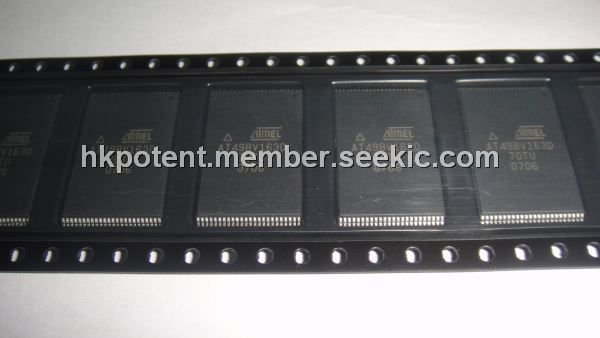

AT49BV163D-70TU, 16-megabit 2.7 volt Only Flash Memory, TSOP48, 10mA, 70ns

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~9.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~9.90

PartNumber:: AT49BV163D-70TU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Judy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-04

From Other Seller

Part Number:AT49BV163D-70TU
US $1.00 - 9.90
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT49BV163D-70TU is a 2.7-volt 16-megabit Flash memory organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. The x16 data appears on I/O0 - I/O15; the x8 data appears on I/O0 - I/O7. The AT49BV163D-70TU is divided into 39 sectors for erase operations. The device is offered in a 48-lead TSOP and a 48-ball CBGA package. The AT49BV163D-70TU has CE and OE control signals to avoid any bus contention. This device can be read or reprogrammed using a single power supply, making it ideally suited for in-system programming.

Parametrics

AT49BV163D-70TU absolute maximum ratings: (1)Temperature under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages(including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V.

Features

AT49BV163D-70TU features: (1)Data Polling, Toggle Bit, Ready/Busy for End of Program Detection; (2)RESET Input for Device Initialization; (3)Sector Lockdown Support; (4)TSOP and CBGA Package Options; (5)Top or Bottom Boot Block Configuration Available; (6)128-bit Protection Register; (7)Minimum 100,000 Erase Cycles; (8)Common Flash Interface (CFI); (9)Green (Pb/Halide-free) Packaging; (10)Low-power Operation: 10mA Active, 15μA Standby; (11)Supports Reading and Programming from Any Sector by Suspending Erase of a Different Sector; (12)Supports Reading Any Byte/Word in the Non-suspending Sectors by Suspending Programming of Any Other Byte/Word; (13)Fast Word Program Time:10μs; (14)Fast Sector Erase Time:100 ms; (15)Single Voltage Read/Write Operation: 2.65V to 3.6V; (16)Fast Read Access Time:70 ns.
