Product Summary
The MC33030P is a monolithic DC servo motor controller providing all active functions necessary for a complete closed loop system. The MC33030P consists of an on–chip op amp and window comparator with wide input common–mode range, drive and brake logic with direction memory, Power H–Switch driver capable of 1.0A, independently programmable over–current monitor and shutdown delay, and over–voltage monitor. This part is ideally suited for almost any servo positioning application that requires sensing of temperature, pressure, light, magnetic flux, or any other means that can be converted to a voltage.
Parametrics
MC33030P absolute maximum ratings: (1)Power Supply Voltage VCC: 36V; (2)Input Voltage Range Op Amp, Comparator, Current Limit (Pi 1 2 3 6 7 8 9 15) VIR:–0.3 to VCC V; (3)Input Differential Voltage Range Op Amp Comparator (Pins 1 2 3 6 7 8 9) VIDR:–0.3 to VCC V; (4)Delay Pin Sink Current: 20mA; (5)Output Source Current (Op Amp) Isource: 10mA; (6)Drive Output Voltage Range VDRV :–0.3 to (VCC + VF) V; (7)Drive Output Source Current IDRV(source): 1.0A; (8)Drive Output Sink Current IDRV(sink): 1.0A; (9)Brake Diode Forward Current IF: 1.0A; (10)Operating Junction Temperature TJ: +150℃; (11)Operating Ambient Temperature Range TA: –40℃ to +85℃; (12)Storage Temperature Range Tstg:–65℃ to +150℃.
Features
MC33030P features: (1)On-chip Error Amp for Feedback Monitoring; (2)Window Detector with Deadband and Self Centering Reference Input; (3)Drive/Brake Logic with Direction Memory; (4)1.0 A Power H-Switch; (5)Programmable Over-Current Detector; (6)Programmable Over-Current Shutdown Delay; (7)Over-Voltage Shutdown.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

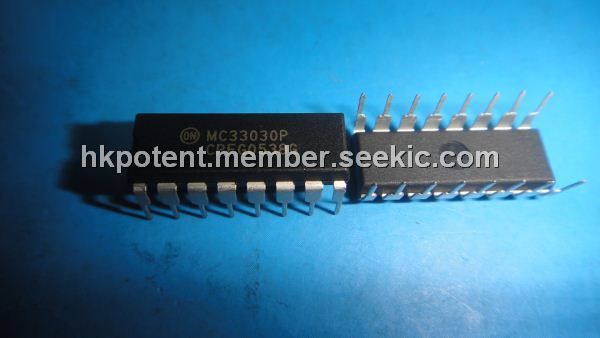

MC33030P |
ON Semiconductor |
Motor / Motion / Ignition Controllers & Drivers DC Brushless Motor |
Data Sheet |
Negotiable |
|
|||||
MC33030PG |
ON Semiconductor |
Motor / Motion / Ignition Controllers & Drivers DC Brushless Motor Controller |
Data Sheet |
Negotiable |
|
