Product Summary

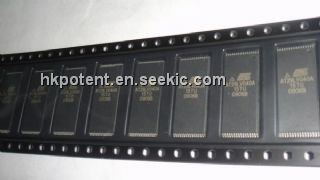

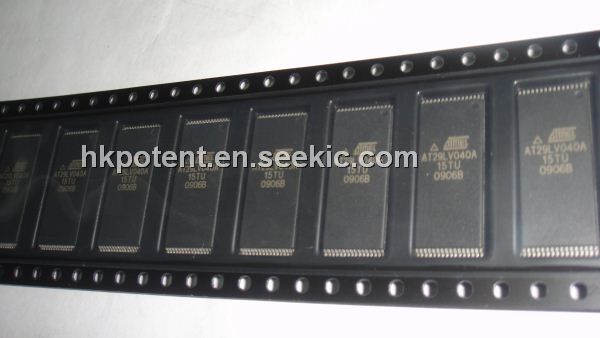

The AT29LV040A15TU is a 3-volt only in-system Flash Programmable and Erasable Read Only Memory(PEROM). Its 4 megabits of memory is organized as 524,288 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS EEPROM technology, the AT29LV040A15TU offers access times to 150 ns, and a low 54 mW power dissipation. When the AT29LV040A15TU is deselected, the CMOS standby current is less than 50 μA. The device endurance is such that any sector can typically be written to in excess of 10,000 times. The programming algorithm is compatible with other devices in Atmel 3-volt only Flash memories. Reprogramming the AT29LV040A15TU is performed on a sector basis; 256 bytes of data are loaded into the device and then simultaneously programmed.
Parametrics
AT29LV040A15TU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (Including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on A9 (Including NC Pins) with Respect to Ground: -0.6V to +13.5V.
Features
AT29LV040A15TU features: (1)Single Voltage, Range 3V to 3.6V Supply; (2)3-volt Only Read and Write Operation; (3)Software Protected Programming; (4)Fast Read Access Time: 150 ns; (5)Low Power Dissipation: 15 mA Active Current, 50μA CMOS Standby Current; (6)Sector Program Operation: Single Cycle Reprogram (Erase and Program), 2048 Sectors (256 Bytes/Sector), Internal Address and Data Latches for 256 Bytes; (7)Two 16K Bytes Boot Blocks with Lockout; (8)Fast Sector Program Cycle Time: 20 ms Max; (9)Internal Program Control and Timer; (10)DATA Polling for End of Program Detection; (11)Typical Endurance > 10,000 Cycles; (12)CMOS and TTL Compatible Inputs and Outputs; (13)Green (Pb/Halide-free) Packaging Option.
Diagrams
