Product Summary
The ADG506AKPZ is a CMOS monolithic analog multiplexer with 16 channels and dual 8 channels, respectively. The ADG506AKPZ switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG506AKPZ has TTL and 5V CMOS logic compatible digital inputs. The ADG506AKPZ is designed on an enhanced LC2MOS process, which gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. The device can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. These multiplexers also feature high switching speeds and low RON.
Parametrics
ADG506AKPZ absolute maximum ratings: (1)VDD to VSS: 44V; (2)VDD to GND: 25V; (3)VSS to GND:–25 V; (4)Analog Inputs2 Voltage at S, D: VSS–2V to VDD+ 2V or 20 mA, Whichever Occurs First; (5)Continuous Current, S or D: 20mA; (6)Pulsed Current S or D 1 ms Duration, 10% Duty Cycle: 40mA; (7)Digital Inputs2 Voltage at A, EN: VSS–4V to VDD + 4 V or 20mA, Whichever Occurs First; (8)Power Dissipation (Any Package) Up to +75℃: 470mW; (9)Derates above +75℃ by: 6mW/℃; (10)Operating Temperature; (11)Commercial (K Version): -40℃ to +85℃; (12)Industrial (B Version):–40℃ to +85℃; (13)Extended (T Version):–55℃ to +125℃; (14)Storage Temperature Range:–65℃ to +150℃; (15)Lead Temperature (Soldering, 10 secs): +300℃.
Features
ADG506AKPZ features: (1)44V Supply Maximum Rating; (2)VSS to VDD Analog Signal Range; (3)Single/Dual Supply Specifications; (4)Wide Supply Ranges (10.8 V to 16.5 V); (5)Extended Plastic Temperature Range(–40℃ to +85℃); (6)Low Power Dissipation (28 mW max); (7)Low Leakage (20 pA typ); (8)Available in 28-Lead DIP, SOIC, PLCC, TSSOP and LCCC Packages; (9)Superior Alternative to: DG506A, Hl-506; DG507A, Hl-507.

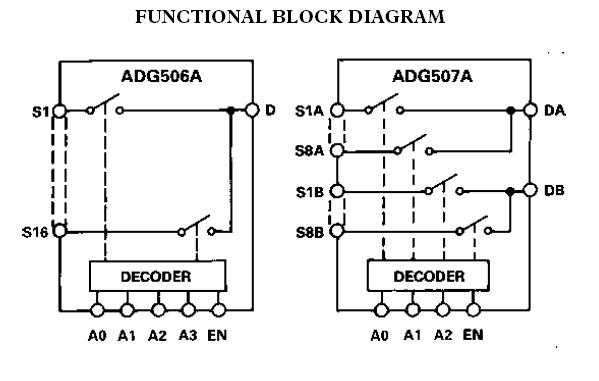

Diagrams
