Product Summary
The AD688SQ/883 is a high precision ±10 V tracking reference. Low tracking error, low initial error and low temperature drift give the AD688SQ/883 reference absolute ±10 V accuracy performance previously unavailable in monolithic form. The AD688SQ/883 uses a proprietary ion-implanted buried Zener diode, and laser-waferdrift-trimming of high stability thin-film resistors to provide outstanding performance at low cost. The AD688SQ/883 includes the basic reference cell and three additional amplifiers. The amplifier is laser-trimmed for low offset and low drift and maintain the accuracy of the reference.
Parametrics
AD688SQ/883 absolute maximum ratings: (1)+VS to -VS: 36 V; (2)Power Dissipation (+25℃), Q Package: 600 mW; (3)Storage Temperature: -65℃ to +150℃; (4)Lead Temperature (Soldering, 10 Seconds): +300℃; (5)Package Thermal Resistance: Q (qJA/qJC): 120/35℃/W.
Features
AD688SQ/883 features: (1)±10 V Tracking Outputs; (2)Kelvin Connections; (3)Low Tracking Error -1.5 mV; (4)Low Initial Error -2.0 mV; (5)Low Drift -1.5 ppm/8C; (6)Low Noise -6 mV p-p; (7)Flexible Output Force and Sense Terminals; (8)High Impedance Ground Sense; (9)Machine Insertable DIP Packaging; (10)MIL-STD-883 Compliant Versions Available.

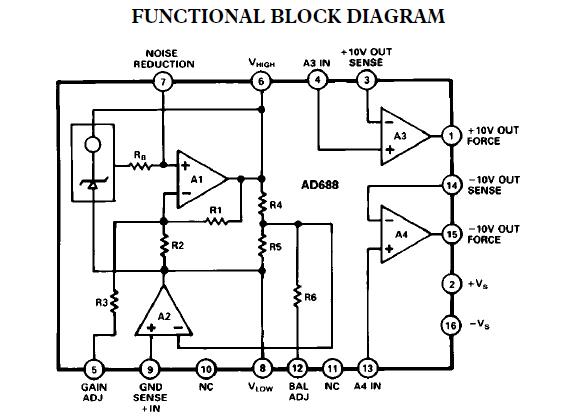

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AD688SQ/883 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||||
