AD1674KN

AD1674KN, 12-Bit A/D Converter, DIP, 0 to + 16.5 V, 825 mW, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.90~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	3.00 / Piece
1001 ~ 2000 :	2.95 / Piece
2001 ~ 3000 :	2.90 / Piece

PartNumber:: AD1674KN

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-26

From Other Seller

Part Number:AD1674KN
US $2.90 - 3.00
Quantity:

piece

Product Summary

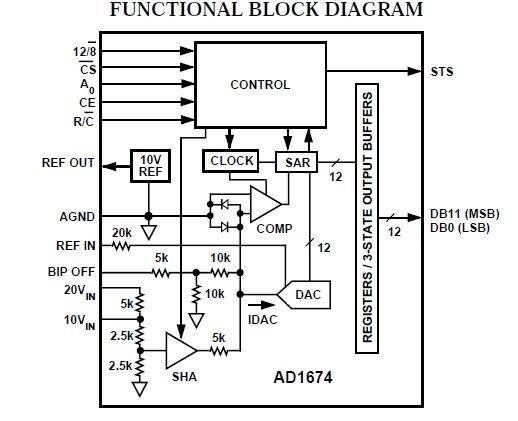

The AD1674KN is a complete, multipurpose, 12-bit analog-todigital converter, consisting of a user-transparent onboard sample-and-hold amplifier (SHA), 10 volt reference, clock and three-state output buffers for microprocessor interface. The AD1674KN is pin compatible with the industry standard AD574A and AD674A, but includes a sampling function while delivering a faster conversion rate. The on-chip SHA has a wide input bandwidth supporting 12-bit accuracy over the full Nyquist bandwidth of the converter.

Parametrics

AD1674KN absolute maximum ratings: (1)VCC to Digital Common: 0 to + 16.5 V; (2)VEE to Digital Common: 0 to -16.5 V; (3)VLOGIC to Digital Common: 0 V to +7 V; (4)Analog Common to Digital Common: ±1 V; (5)Digital Inputs to Digital Common: -0.5 V to VLOGIC +0.5 V; (6)Analog Inputs to Analog Common: VEE to VCC; (7)20 VIN to Analog Common: VEE to +24 V; (8)REF OUT: Indefinite Short to Common: Momentary Short to VCC; (9)Junction Temperature: +175℃; (10)Power Dissipation: 825 mW; (11)Lead Temperature, Soldering (10 sec): +300℃, 10 sec; (12)Storage Temperature: -65℃ to +150℃.

Features

AD1674KN features: (1)Complete Monolithic 12-Bit 10 ms Sampling ADC; (2)On-Board Sample-and-Hold Amplifier; (3)Industry Standard Pinout; (4)8- and 16-Bit Microprocessor Interface; (5)AC and DC Specified and Tested; (6)Unipolar and Bipolar Inputs; (7)65 V, 610 V, 0 V–10 V, 0 V–20 V Input Ranges; (8)Commercial, Industrial and Military Temperature Range Grades; (9)MIL-STD-883 and SMD Compliant Versions Available.
