Product Summary
The Z8401510FEG is an enhanced intelligent peripheral controller. The Z8401510FEG is a CMOS 8-bit microprocessor integrated with the CTC, SIO, CGC, WDT and the PIO into a single 100-pin QFP, or 100-pin VQFP package. The Z8401510FEG is targeted for a broad range of applications ranging from error correcting modems to enhancement/ cost reductions of existing hardware using Z80 MCU-based discrete peripherals.
Parametrics
Z8401510FEG absolute maximum ratings: (1)Supply Voltage: -0.3V to +7.0V; (2)Storage Temperature: -65℃ to +150℃; (3)Clock Capacitance: 35pF.
Features
Z8401510FEG features: (1)Clock Output high voltage: VCC-0.6V; (2)Clock Output Low voltage: 0.4V; (3)Clock Input High voltage: VCC-0.6V; (4)Clock Input Low voltage: 0.4V; (5)Input High voltage: 2.2V to VCC V; (6)Input low voltage: -0.3V to 0.8V; (7)Output low voltage: 0.4V; (8)Output High voltage: 2.4V.

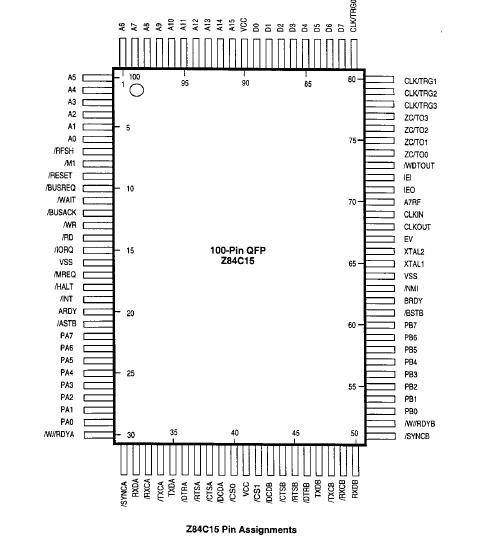

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z8401510FEG |
ZiLOG |
I/O Controller Interface IC 10 MHz Z80 IPC |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
Z8400 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
Z840004DSE |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
Z8400ADSD |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
Z84013 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
Z84015 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
Z8401506FEC |
ZiLOG |
I/O Controller Interface IC 6 MHz Z80 IPC |
Data Sheet |
Negotiable |
|
||||||
