Product Summary
The XC95108-15TQG100C is a high-performance CPLD. The XC95108-15TQG100C provides advanced in-system programming and test capabilities for high performance, general purpose logic integration. All devices are in-system programmable for a minimum of 10,000 program/erase cycles. Extensive IEEE 1149.1 (JTAG) boundary-scan support is also included on all family members.
Parametrics
XC95108-15TQG100C absolute maximum ratings: (1)Supply voltage relative to GND, VCC: -0.5 to 7.0 V; (2)DC input voltage relative to GND, VIN: -0.5 to VCC + 0.5 V; (3)Voltage applied to 3-state output with respect to GND, VTS: -0.5 to VCC + 0.5 V; (4)Storage temperature, TSTG: -65 to +150℃; (5)Max soldering temperature (10 s @ 1/16 in = 1.5 mm), TSOL: +260℃.
Features
XC95108-15TQG100C features: (1)High-performance: 5 ns pin-to-pin logic delays on all pins; fCNT to 125 MHz; (2)Large density range: 36 to 288 macrocells with 800 to 6,400 usable gates; (3)5V in-system programmable: Endurance of 10,000 program/erase cycles; Program/erase over full commercial voltage and ; (4)temperature range; (5)Enhanced pin-locking architecture; (6)Flexible 36V18 Function Block: 90 product terms drive any or all of 18 macrocells within Function Block; (7)Global and product term clocks, output enables, set and reset signals; (8)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (9)Programmable power reduction mode in each macrocell; (10)Slew rate control on individual outputs; (11)User programmable ground pin capability; (12)Extended pattern security features for design protection; (13)Advanced CMOS 5V FastFLASH technology; (14)Supports parallel programming of multiple XC9500 devices.

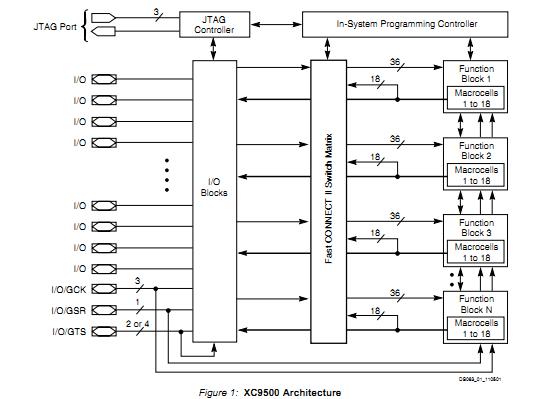

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() XC95108-15TQG100C |
![]() |
![]() IC CPLD 108MCRCELL 15NS 100TQFP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||
