Product Summary
The XC4013E-4HQ208I is a high-performance, high-capacity Field Programmable Gate Array. The XC4013E-4HQ208I provides the benefits of custom CMOS VLSI, while avoiding the initial cost, long development cycle, and inherent risk of a conventional masked gate array.
Parametrics
XC4013E-4HQ208I absolute maximum ratings: (1) Power-On Reset TPOR: 10 to 33ms; (2) Program Latency TPI: 30 to 200μs per CLB column; (3) CCLK (input) Delay (required) TICCK: 4μs; (4) CCLK (input) Period (required) TCCLK: 100ns.
Features
XC4013E-4HQ208I features: (1)Select-RAMTM memory: on-chip ultra-fast RAM with synchronous write option, dual-port RAM option; (2)Fully PCI compliant (speed grades -2 and faster); (3)Abundant flip-flops; (4)Flexible function generators; (5)Dedicated high-speed carry logic; (6)Wide edge decoders on each edge; (7)Hierarchy of interconnect lines; (8)Internal 3-state bus capability; (9)Eight global low-skew clock or signal distribution networks; (10)System Performance beyond 80 MHz; (11)Flexible Array Architecture; (12)Low Power Segmented Routing Architecture; (13)IEEE 1149.1-compatible boundary scan logic support; (14)Individually programmable output slew rate; (15)Programmable input pull-up or pull-down resistors; (16)12mA sink current per XC4000E output; (17)Configured by Loading Binary File; (18)Program verification; (19)Internal node observability; (20)Backward Compatible with XC4000 Devices; (21)Development System runs on most common computer platforms.

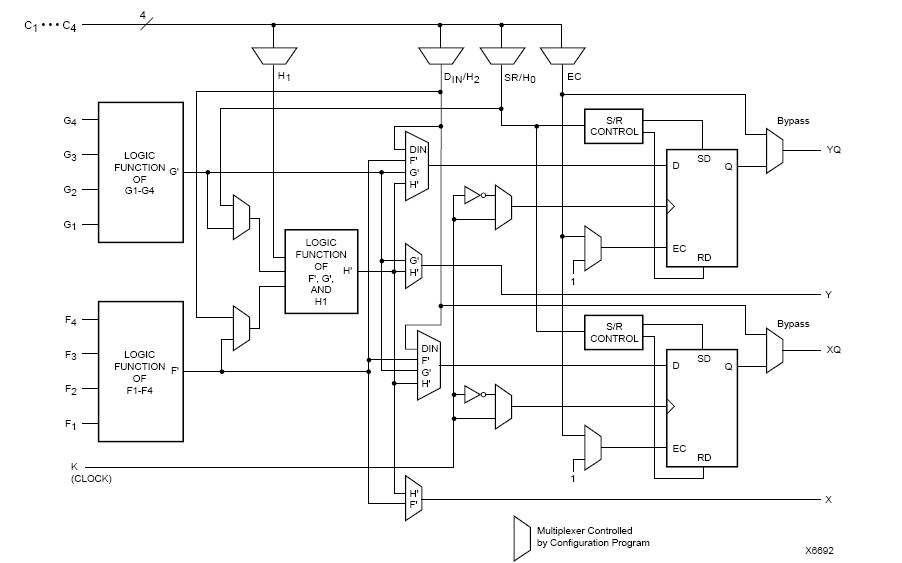

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

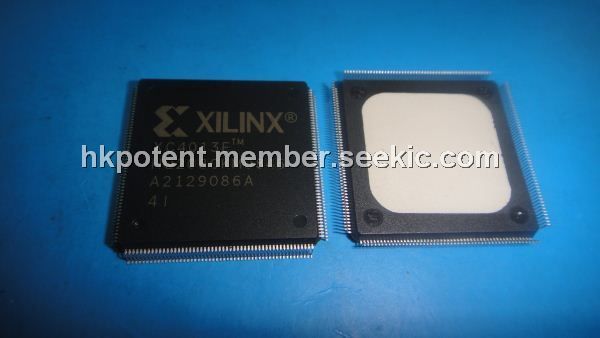

 XC4013E-4HQ208I |
|
IC FPGA I-TEMP 5V 4SPD 208-HQFP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
XC4000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000E |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000X |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000XL |
Other |
|
Data Sheet |
Negotiable |
|
||||
