Product Summary

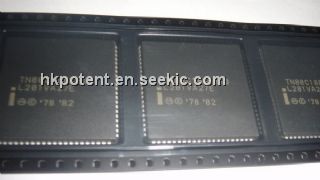

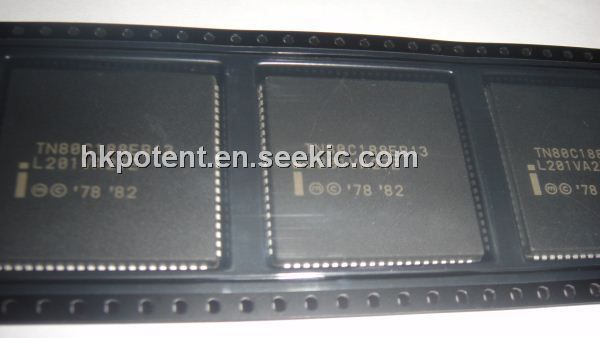

The TN80C188EB-13 is a low-power, high-integration microprocessor. It enhances the existing 186 family by offering new features and new operating modes. The TN80C188EB-13 is object code compatible with the 80C186XL/80C188XL microprocessors.
Parametrics
TN80C188EB-13 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Case Temp under Bias: -65℃ to +120℃; (3)Supply Voltage with Respect to VSS: -0.5V to + 6.5V; (4)Voltage on other Pins with Respect to VSS: -0.5V to VCC + 0.5V.
Features
TN80C188EB-13 features: (1)Integrated Feature Set: Low-Power Static CPU Core, Two Independent UARTs each with an Integral Baud Rate Generator, Two 8-Bit Multiplexed I/O Ports; (2)Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O; (3)Speed Versions Available (5V): 13 MHz; (4)Available in Extended Temperature Range (-40℃ to +85℃); (5)Speed Versions Available (3V): 13 MHz; (6)Low-Power Operating Modes: Idle Mode Freezes CPU Clocks but keeps Peripherals Active, Powerdown Mode Freezes All; (7)Internal Clocks.

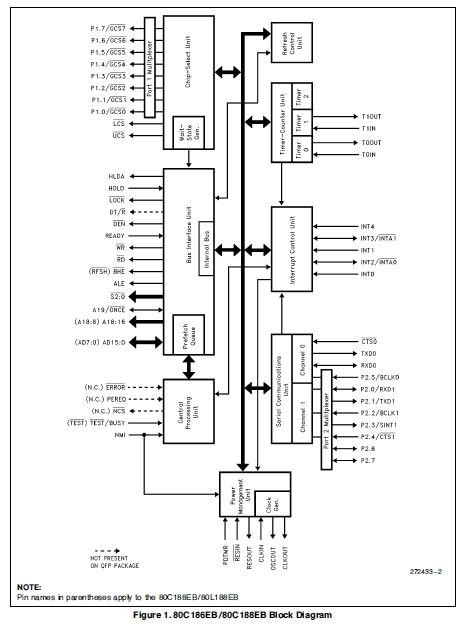

Diagrams
