The TC7WZ00FK is a 2 Input Nand Gate.
Parametrics
TC7WZ00FK absolute maximum ratings: (1)Power supply voltage, VCC: -0.5~6 V; (2)DC input voltage, VIN: -0.5~6 V; (3)DC output voltage, VOUT: -0.5~6 V; (4)Input diode current, IIK: -20 mA; (5)Output diode current, IOK: -20 mA; (6)DC output current, IOUT: ±50 mA; (7)DC VCC/ground current, ICC: ±50 mA; (8)Power dissipation, PD: 300 (SM8); 200 (US8) mW; (9)Storage temperature, Tstg: -65 to 150℃.
Features
TC7WZ00FK features: (1)High output drive: ±24 mA (min) @VCC = 3 V; (2)Super high speed operation: tpd 2.4 ns (typ.) @VCC = 5 V, 50 pF; (3)Operation voltage range: VCC (opr) = 1.65 to 5.5 V; (4)Latch-up performance: ±500 mA or more; (5)ESD performance: ±200 V or more (JEITA); ±2000 V or more (MIL); (6)Power down protection is provided on all inputs and outputs; (7)Matches the performance of TC74LCX series when operated; (8)at 3.3 V VCC.

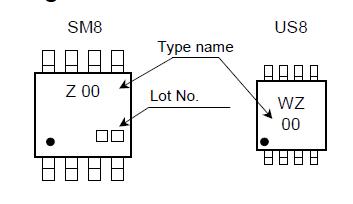

Diagrams
