Product Summary

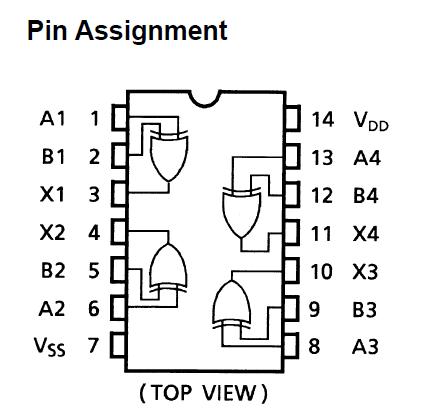

The TC4030BP is a Quad Exclusive-OR Gate. The TC4030BP contains four circuits of exclusive OR gates. Since the buffers of two stage inverters are provided for all the outputs, the input/output voltage characteristic has been improved and the noise immunity has been also improved. And increase of transmission time due to load capacity increase is kept minimum. Wide variety of applicaitons are offerred, such as digital comparators and parity circuits.
Parametrics
TC4030BP absolute maximum ratings: (1)DC supply voltage, VDD: VSS -0.5 to VSS + 20 V; (2)Input voltage, VIN: VSS -0.5 to VDD + 0.5 V; (3)Output voltage, VOUT: VSS -0.5 to VDD + 0.5 V; (4)DC input current, IIN: ±10 mA; (5)Power dissipation, PD: 300 (DIP)/180 (SOIC) mW; (6)Operating temperature range, Topr: -40 to 85℃; (7)Storage temperature range, Tstg: -65 to 150℃.
Features
TC4030BP features: (1)High accuracy: ±0.5 LSB typ; (2)High speed conversion: 100μsec typ @ fcp=640kHZ; (3)Single power supply: 5V±10%; (4)Low power consumption: 0mW MAX @ TA=25℃; (5)8 channel analog multiplex input; (6)Easy interface to all microprocessors; (7)Zero or full scale adjustment free; (8)Latched 3-stste output.
