Product Summary
The SKY65534-11 is an integrated, Single-Pole Double-Throw (SPDT) switch with a Low-Noise Amplifier (LNA) intended for wireless applications. The device has a low Noise Figure (NF) with high linearity in the transmit mode (+24 dBm power at 3% EVM). The SKY65534-11 operates at 3 V and draws 10 to 12 mA of current. In the transmit mode, a shutdown function saves power when the device is inactive. The switch requires five external components. The applications of the SKY65534-11 include 802.11 a/n WLANs, 5 GHz ISM radios, SmartPhones, Notebooks, netbooks, tablets, Routers, access points, gateways, Wireless video systems.
Parametrics
SKY65534-11 absolute maximum ratings: (1)Low Noise Figure: 2 dB; (2)Frequency range: 4.9 to 5.9 GHz; (3)High IIP3: +7 dBm; (4)High IIP3: +7 dBm; (5)Supply voltage: 3.0 V.
Features
SKY65534-11 features: (1)Low Noise Figure: 2 dB; (2)Frequency range: 4.9 to 5.9 GHz; (3)Enable/disable mode; (4)High IIP3: +7 dBm; (5)High gain: 13 dB; (6)3.0 V supply; (7)Miniature DFN (8-pin, 2 x 2 mm) package (MSL3, 260: C per JEDEC J-STD-020).

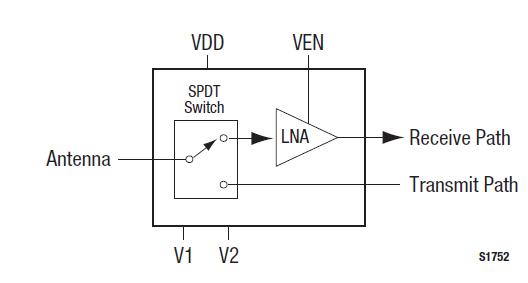

Diagrams
