Product Summary

The SA60 is a 500W transient voltage suppressor.

Parametrics

SA60 absolute maximum ratings: (1)Peak Pulse Power Dissipation at TA = 25℃(Note 1, 2, 5)PPPM: 500 Minimum W; (2)Peak Forward Surge Current (Note 3) IFSM: 70A; (3)Peak Pulse Current on 10/1000μS Waveform IPPM: See Table 1 A; (4)Steady State Power Dissipation (Note 2, 4) PM(AV): 1.0W; (5)Operating and Storage Temperature Range Tj, TSTG: -65℃ to +175℃.

Features

SA60 features: (1) Glass Passivated Die Construction; (2)500W Peak Pulse Power Dissipation; (3)5.0V – 170V Standoff Voltage; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

Diagrams

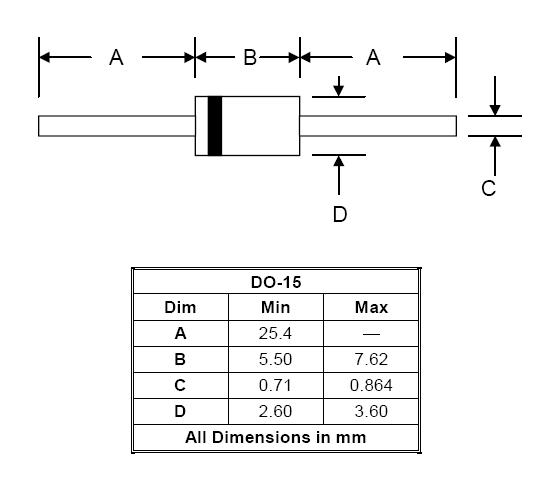

SA60 dimnsion
