Product Summary
The PVG612SPBF photovoltaic relay is a single pole, normally open solid-state relay that can replace electromechanical relays in many applications. The PVG612SPBF utilizes International Rectifier’s proprietary HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator. The applications of the PVG612SPBF include: Programmable Logic Controllers, Computers and Peripheral Devices, Audio Equipment, Power Supplies and Power Distribution, Control of Displays and Indicators, Industrial Automation.
Parametrics
PVG612SPBF Input characteristics: (1)Minimum Control Current: 5.0mA; (2)Maximum Control Current for Off-State Resistance @ TA = +25℃: 0.4mA; (3) Control Current Range (Caution: current limit input LED, see figure 6): 5.0 to 25mA; (4) Maximum Reverse Voltage: 7.0 V.
Features
PVG612SPBF features: (1)Bounce-free operation; (2)High load current capacity; (3)High off-state resistance; (4)Linear AC/DC operation; (5)4,000 VRMS I/O Isolation; (6)Solid-State reliability; (7)UL recognized; (8)ESD Tolerance: 4000V Human Body Model; 500V Machine Model.

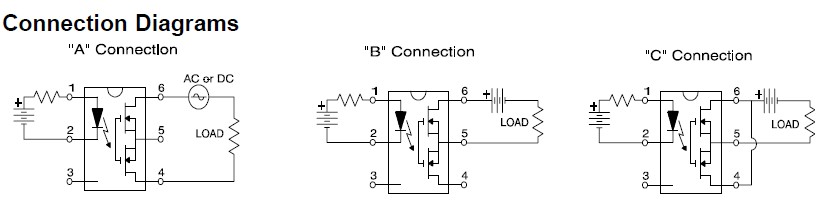

Diagrams
