Product Summary
The PEEL18CV8P25 is a Programmable Electrically Erasable Logic device providing an attractive alternative to ordinary PLDs. The PEEL18CV8P25 offers the performance, flexibility, ease of design and production practicality needed by logic designers today. The PEEL18CV8P25 architecture allows it to replace over 20 standard 20-pin PLDs (PAL, GAL, EPLD etc.). It also provides additional architecture features so more logic can be put into every design. Anachip’s JEDEC file translator instantly converts to the PEEL18CV8P-25L existing 20-pin PLDs without the need to rework the existing design. Development and programming support for the PEEL18CV8P25 is provided by popular third-party program- mers and development software.
Parametrics
PEEL18CV8P25 absolute maximum ratings: (1)vcc Supply Voltage Relative to Ground: －0.5 to + 6.0V; (2)VI，VO Voltage Applied to Any Pin" Relative to Ground1: -0.5 to VCC + 0.6V; (3)10 Output Current Per Pin (IOL, IOH): ±25mA; (4)TST Storage Temperature: -65 to+ 150℃; (5)TLT Lead Temperature Soldering 10 Seconds: +300℃.
Features
PEEL18CV8P25 features: (1)Multiple Speed Power, Temperature Options: VCC = 5 Volts ±10%, Speeds ranging from 7ns to 25 ns, Power as low as 37mA at 25MHz, Commercial and industrial versions available; (2)CMOS Electrically Erasable Technology: Superior factory testing, Reprogrammable in plastic package, Reduces retrofit and development costs; (3)Development / Programmer Support: Third party software and programmers, WinPLACE Development Software, PLD-to-PEELTM JEDEC file translator; (4)Architectural Flexibility: Enhanced architecture fits in more logic, 74 product terms x 36 input AND array, 10 inputs and 8 I/O pins, 12 possible macrocell configurations, Asynchronous clear, Independent output enables, 20 Pin DIP/SOIC/TSSOP and PLCC; (5)Application Versatility: Replaces random logic, Super sets PLDs (PAL, GAL, EPLD), Enhanced Architecture fits more logic than ordinary PLDs.

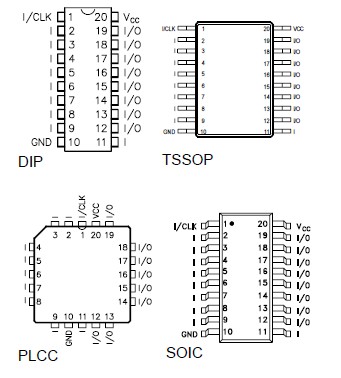

Diagrams
