PEB3081HV1.4

Product Summary

The PEB3081HV1.4 is an ISDN Interface. It implements the four-wire S/T interface used to link voice/data ISDN terminals, network terminators and PBX trunk lines to a central office. The PEB3081HV1.4 is the successor of the SBCX PEB 2081 in 3.3 V technology. The PEB3081HV1.4 provides an S/T interface operating in TE, LT-T, LT-S, NT and intelligent NT modes, a serial control interface (SCI) for host programming, three general purpose I/O pins and one LED output which is capable to indicate the activation status of the S-interface automatically or can be programmed by the host.

Parametrics

PEB3081HV1.4 absolute maximum ratings: (1)Ambient temperature under bias PEB: 0 to 70℃; (2)PEF: -45 to +85℃; (3)Storage temperature TSTG:–55 to 150℃; (4)Input/output voltage on any pin with respect to ground VS: –0.3 to 5.25V; (5)Maximum voltage on any pin with respect to ground Vmax: 5.5V.

Features

PEB3081HV1.4 features: (1)Full duplex 2B + D S/T interface transceiver according to ITU-T I.430; (2)Successor of SBCX PEB 2081 in 3.3V technology; (3)Conversion of the frame structure between the S/T-interface and IOM-2; (4)IOM-2 interface supporting TE, LT-T, LT-S, NT and intelligent NT modes; (5)Single and double clocks on IOM-2; (6)Two serial data strobe signals; (7)Serial control interface (SCI); (8)Microcontroller access to all IOM-2 timeslots; (9)Monitor channel handler (master/slave); (10)IOM-2 MONITOR and C/I-channel protocol to control peripheral devices; (11)Receive timing recovery; (12)D-channel access control; (13)Activation and deactivation procedures with automatic activation from power down state; (14)Access to S and Q bits of S/T-interface; (15)Adaptively switched receive thresholds; (16)3 general purpose I/O pins multiplexed with channel select pins; (17)Three pins for D-channel active indication, Stop/Go bit output and E-bit control on S; (18)One programmable timer; (19)Watchdog timer; (20)Software Reset; (21)One LED pin automatically indicating layer 1 activated state; (22)Test loops; (23)Sophisticated power management for restricted power mode.

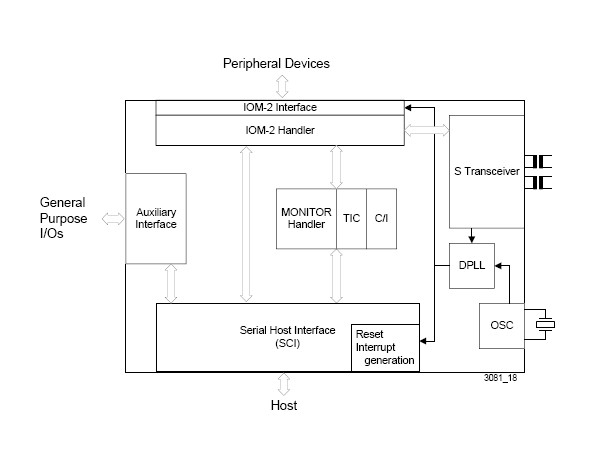

Diagrams
