Product Summary

The PA60EU is a dual power op amp. This approach provides a cost-effective solution to applications where multiple amplifiers are required or a bridge configuration is needed. Very low harmonic distortion of 0.02% THD and low IQ makes it a good solution for low power audio applications such as laptops and computer speakers.

Parametrics

PA60EU absolute maximum ratings: (1)supply voltage, total: 5V to 40V; (2)output current: SOA; (3)power dissipation, internal (PA60EU, 2 amplifiers)4 31.82W; (4)input voltage, differential: ±Vs; (5)input voltage, common mode: +Vs,-Vs-5V; (6)junction temperature, max: 150℃; (7)temperature, pin solder - 10secs max: 220℃; (8)temp range storage: -55 to 150℃; (9)operating temp range: -40 to 125℃.

Features

PA60EU features: (1)RoHS compliant; (2)low cost; (3)wide bandwidth: 1.1Mhz; (4)high output current - 1a per amplifier; (5)wide common mode range includes negative supply; (6)low quiescent current; (7)very low distortion.

Diagrams

PA60EU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

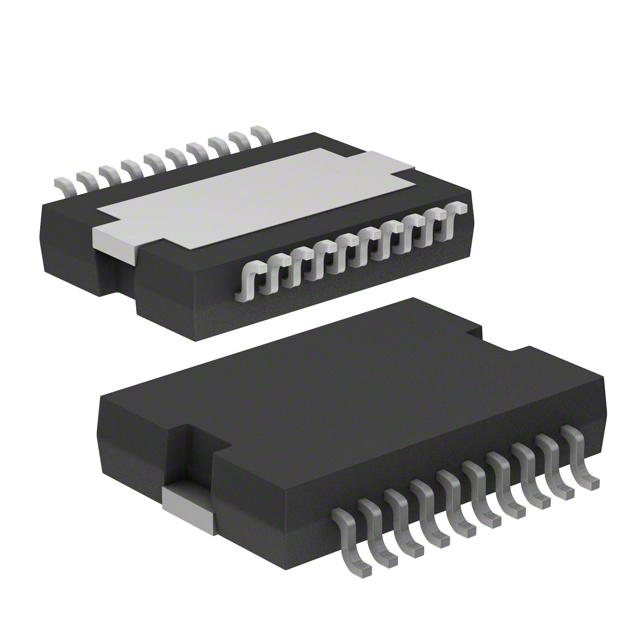

PA60EU
PA60EU

Cirrus Logic

Operational Amplifiers - Op Amps IC 40V / 1.5 A AMP

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PA60
PA60

Other


Data Sheet

Negotiable
PA6001
PA6001


BATTERY CHARGER 3.6V

Data Sheet

Negotiable
PA60DK
PA60DK


OP AMP DL HV 40V 1A 20P PSOP DK

Data Sheet

Negotiable
PA60EU
PA60EU

Cirrus Logic

Operational Amplifiers - Op Amps IC 40V / 1.5 A AMP

Data Sheet

Negotiable
PA60EW
PA60EW

Cirrus Logic

Operational Amplifiers - Op Amps IC 40V / 1.5 A AMP

Data Sheet

Negotiable
