Product Summary
The PA2423L is a monolithic, high-efficiency, silicon-germanium power amplifier IC, the PA2423L is designed for class 1 Bluetooth 2.4 GHz radio applications. It delivers +22.5dBm output power with 45% power-added efficiency – making it capable of overcoming insertion losses of up to 2.5 dB between amplifier output and antenna input in class 1 Bluetooth applications. The applications of the PA2423L include Bluetooth Class 1, USB Dongles, Laptops, Access Points, and Cordless Piconets.
Parametrics
PA2423L absolute maximum ratings: (1)VCC Supply Voltage: -0.3 to +3.6 V; (2)VCTL Control Voltage: -0.3 to VCC V; (3)VRAMP Ramping Voltage: -0.3 to VCC V; (4)IN RF Input Power: +8dBm; (5)TA Operating Temperature Range: -40 to +85℃; (6)TSTG Storage Temperature Range: -40 to +150℃; (7)Tj Maximum Junction Temperature: +150℃.
Features
PA2423L features: (1)+22.5dBm at 45% Power Added Efficiency; (2)Low current 80mA typical @ Pout=+20dBm; (3)Temperature stability better than 1dB; (4)Power-control and Power-down modes; (5)Single 3.3 V Supply Operation; (6)Temperature rating: -40℃ to +85℃; (7)Very small plastic package - 6 lead LPCC (1.6mm x 3.0mm).

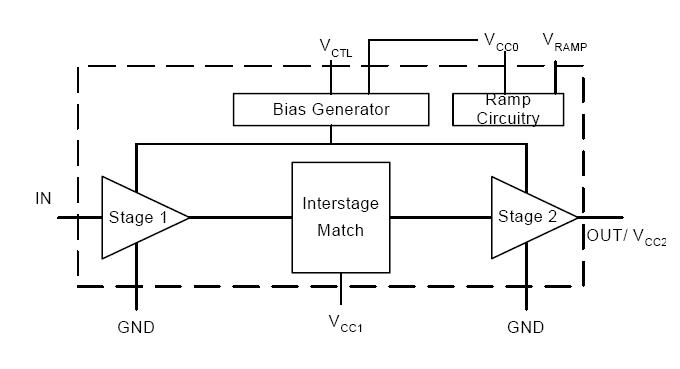

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PA2423L-R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
