Product Summary
The OP07Z is a precision operational amplifier with very low input offset voltage, input offset drift of 0.2μV/℃ and low input bias current of 0.7nA. The wide input common mode range of ±14V combined with high CMRR of 110dB minimum, plus high input impendence and high open-loop gain make the OP07Z particularly useful for high-gain instruction applications. The applications of the OP07Z include Precision amplifiers, Thermocouple amplifiers, Low level signal processing, Medical instrumentation, Strain gauge amplifiers, and high accuracy data acquisition.
Parametrics
OP07Z absolute maximum ratings: (1)Total supply voltage (V+ to V-): ±22V; (2)Internal Power Dissipation (CDIP): 500mW; (3)Differential Input Voltage: ±30V; (4)Input Voltage: ±22V; (5)Storage Temperature Range: -65 to +150℃; (6)Operating Temperature Range: -55 to +125℃; (7)Lead Temperature Range (soldering, 10sec): +300℃; (8)Duration of Output Short Circuit: Indefinite; (9)Junction Temperature: -65 to +160℃
Features
OP07Z features: (1)Ultra low offset voltage: 10μV; (2)Ultra low offset voltage Drift: 0.2μV/℃; (3)Ultra stable vs. Time: 0.2μV/Month; (4)Ultra Low noise: 0.35μVp-p; (5)Wide supply voltage: ±3V to ±18V; (6)High common mode input: ±14V; (7)No external components required; (8)Fits AD510, 725, 108A/308A, 741 sockets.

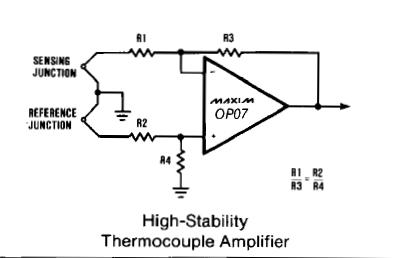

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP07Z |
Maxim Integrated Products |
Operational Amplifiers - Op Amps |
Data Sheet |
Negotiable |
|
||||
|
OP07Z/883B |
Maxim Integrated Products |
Operational Amplifiers - Op Amps |
Data Sheet |
Negotiable |
|
||||
