Product Summary

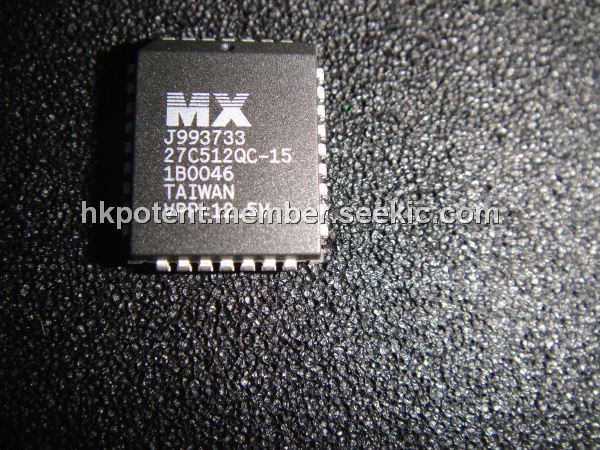

The MX27C512QC-15 is a 5V only, 512K-bit, One-Time Programmable Read Only Memory. It is organized as 64K words by 8 bits per word, operates from a single +5volt supply, has a static standby mode, and features fast single address location programming. All programming signals are TTL levels, requiring a single pulse. For programming outside from the system, existing EPROM programmers may be used. The MX27C512QC-15 supports intelligent fast programming algorithm which can result in programming time of less than fifteen seconds. The MX27C512QC-15 is packaged in industry standard 28 pin dual-in-line packages 32 lead PLCC, and 28 lead TSOP(I) packages.
Parametrics
MX27C512QC-15 absolute maximum ratings: (1)Ambient Operating Temperature: -40℃ to 125℃; (2)Storage Temperature: -65℃ to 125℃; (3)Applied Input Voltage: -0.5V to 7.0V; (4)Applied Output Voltage: -0.5V to VCC + 0.5V; (5)VCC to Ground Potential: -0.5V to 7.0V; (6)A9 & Vpp: -0.5V to 13.5V.
Features
MX27C512QC-15 features: (1)64K x 8 organization; (2)Single +5V power supply; (3)+12.5V programming voltage; (4)Fast access time: 45/55/70/90/100/120/150ns; (5)Totally static operation; (6)Completely TTL compatible; (7)Operating current: 30mA; (8)Standby current: 100uA; (9)Package type: 28 pin plastic DIP, 32 pin PLCC, 28 pin 8 x 13.4 mm TSOP(I).

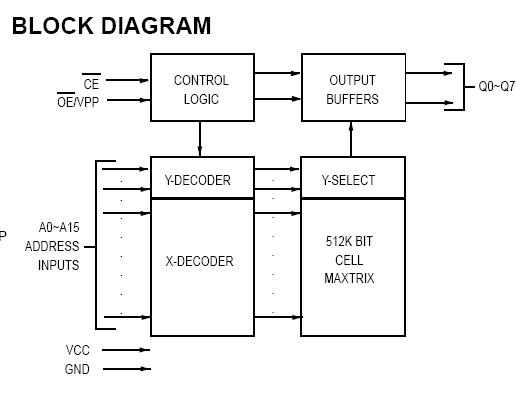

Diagrams
 |
