Product Summary

The MN3009 is a 256-stage BBD having a wide dynamic range and low distortion characteristics. The MN3009 provides a signal delay of up to 12.8msec and is particularly suitable as a device for generation of vibrato and/or chorus effects in electronic musical instruments. The applications of the MN3009 include Vibrato and/or chorus effect in electronic musical instrument, Reverberation effect in electronic musical instruments, Variable or fixed delay of analog signals.

Parametrics

MN3009 absolute maximum ratings: (1)Terminal voltage: -18 to +0.3V; (2)Output voltage: -18 to +0.3V; (3)Operating Temperature: -20 to +60℃; (4)Storage temperature: -55 to +125℃.

Features

MN3009 features: (1)Variable delay time of audio signals: 0.64 to 12.8ms; (2)Clock component cancellation capability; (3)No insertion loss: Li = 0 dB typ; (4)Wide dynamic range; S/N = 88dB typ; (5)Wide frequency response: fi≤14KHz.; (6)Low distortion: THD = 0.3% typ. (Vj = 0.78Vrms); (7)Clock frequency range: 10 to 200KHz; (8)P channel silicon gate process; (9)8-Lead Dual-in-Line Plastic Package.

Diagrams

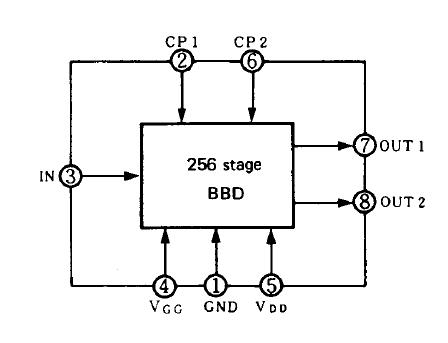

MN3009 block diagram
