Product Summary

The MC74HC08AD is a Quad 2-Input AND Gate. The MC74HC08AD is identical in pin out to the LS08. The MC74HC08AD inputs are compatible with Standard CMOS outputs; with pull up resistors, they are compatible with LSTTL outputs.

Parametrics

MC74HC08AD absolute maximum ratings: (1)DC Supply voltage (Referenced to GND): -0.5V to +7.0V; (2)DC Input voltage (Referenced to GND): -0.5V to VCC+0.5V; (3)DC Output voltage (Referenced to GND): -0.5V to VCC+0.5V; (4)DC Input Current, per pin: ±20mA; (5)DC Output Current, per pin: ±25mA; (6)DC Supply Current, VCC and GND pins: ±50mA; (7)Power Dissipation: 500mW; (8)Storage Temperature: -65 to +150℃; (9)Lead Temperature: 260℃.

Features

MC74HC08AD features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2 to 6V; (4)Low Input Current: 1mA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 24 FETs or 6 Equivalent Gates.

Diagrams

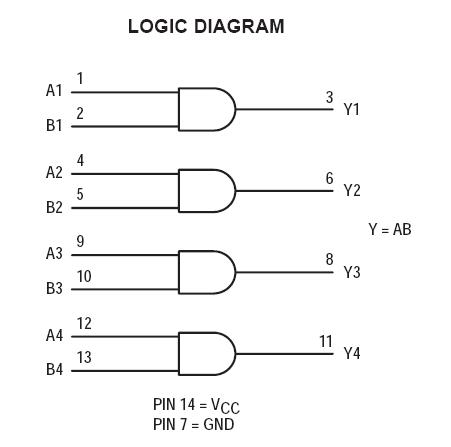

MC74HC08AD block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MC74HC08AD
MC74HC08AD

Other


Data Sheet

Negotiable
MC74HC08ADG
MC74HC08ADG

ON Semiconductor

Gates (AND / NAND / OR / NOR) 2-6V Quad 2-Input AND

Data Sheet

0-1: $0.17
1-25: $0.13
25-100: $0.09
100-500: $0.07
MC74HC08ADR2G
MC74HC08ADR2G

ON Semiconductor

Gates (AND / NAND / OR / NOR) 2-6V Quad 2-Input AND

Data Sheet

0-1: $0.18
1-25: $0.14
25-100: $0.09
100-500: $0.07
MC74HC08ADR2
MC74HC08ADR2


IC GATE AND QUAD 2INPUT 14SOIC

Data Sheet

0-1: $0.33
1-25: $0.25
25-100: $0.18
100-250: $0.14
250-500: $0.11
500-1000: $0.09
MC74HC08ADTR2
MC74HC08ADTR2


IC GATE AND QUAD 2INPUT 14TSSOP

Data Sheet

Negotiable
MC74HC08ADT
MC74HC08ADT

Other


Data Sheet

Negotiable
MC74HC08ADTR2G
MC74HC08ADTR2G

ON Semiconductor

Gates (AND / NAND / OR / NOR) 2-6V Quad 2-Input AND

Data Sheet

0-1: $0.18
1-25: $0.14
25-100: $0.09
100-500: $0.08
