Product Summary

The MC10188P is a high–speed hex buffer with a common Enable input. When Enable is in the high state, all outputs are in the low state. When Enable is in the low state, the outputs take the same state as the inputs.

Parametrics

MC10188P absolute maximum ratings: (1)Power Supply Drain Current IE: 42mAdc; (2)Input Current IinH 5: 265mAdc; (3)IinH 9: 290mAdc; (4)Output Voltage Logic 1 VOH 2:–0.960 to -0.810Vdc; (5)Output Voltage Logic 0 VOL 2:–1.850 to -1.650Vdc; (6)Threshold Voltage Logic 1 VOHA 2:–0.980Vdc; (7)Threshold Voltage Logic 0 VOLA 2:–1.630Vdc; (8)Propagation Delay Enable: 1.1 to 3.5ns; (9)Rise/Fall Time (20 to 80%): 1.1 to 3.3ns.

Features

MC10188P features: (1) Power Dissipation = 180mW typ/pkg (No Load); (2) Propagation Delay = 2.0 ns typ (B-Q) 2.5 ns typ (A-Q).

Diagrams

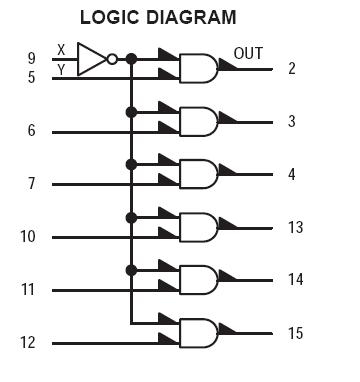

MC10188P block diagram
