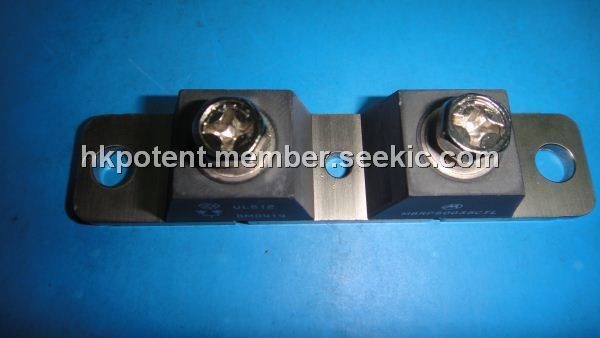

Product Summary
The MBRP60035CTL is a SWITCHMODE Power Rectifier. The MBRP60035CTL uses the Schottky Barrier principle with a platinum barrier metal.
Parametrics
MBRP60035CTL absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 35V; (2)Working Peak Reverse Voltage VRWM: 35V; (3)DC Blocking Voltage VR: 35V; (4)Average Rectified Forward Current Per Leg: 300A; (5)(At Rated VR) TC = +100℃ Per Device: 600A; (6)Peak Repetitive Forward Current (At Rated VR, Square Wave, 20 kHz) TC = +100℃: 300A; (7)IFRM 300 Amps; (8)Non-repetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz): 4000 Amps Peak Repetitive Reverse Surge Current (2μs, 1 kHz) IRRM: 2Amp; (9)Storage Temperature Tstg:–55℃ to +150℃; (10)Operating Junction Temperature TJ:–55℃ to +150℃; (11)Voltage Rate of Change (Rated VR) dv/dt: 10000 V/ms.
Features
MBRP60035CTL features: (1)Dual Diode Construction May Be Paralleled for Higher Current Output; (2)Guardring for Stress Protection; (3)Low Forward Voltage Drop; (4)150℃ Operating Junction Temperature; (5)Recyclable Epoxy; (6) Guaranteed Reverse Avalanche Energy Capability; (7) Improved Mechanical Ratings.

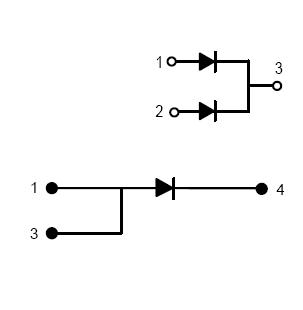

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
MBRP60035CTL |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 600A 35V Low Vf |
Data Sheet |
Negotiable |
|
|||||
MBRP60035CTLG |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 600A 35V Low Vf |
Data Sheet |
Negotiable |
|
