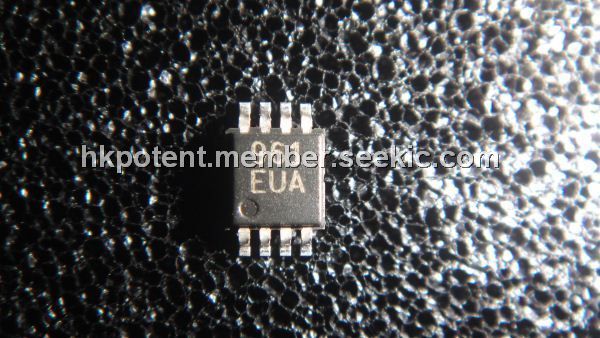

MAX961EUA

MAX961EUA, ultra-high-speed comparator, 8-SOIC, +3V, 270μA, 100mV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~9.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~9.90

PartNumber:: MAX961EUA

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Judy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-10

From Other Seller

Part Number:MAX961EUA
US $1.00 - 9.90
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

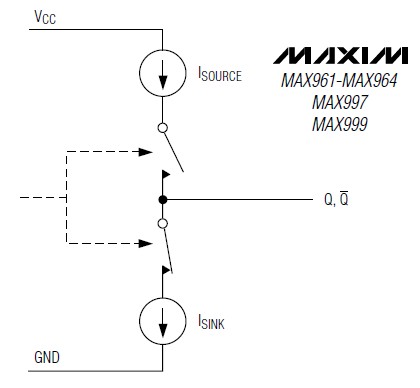

The MAX961EUA is a low-power, ultra-high-speed comparator with internal hysteresis. The device is optimized for single +3V or +5V operation. The input common-mode range extends 100mV Beyond-the-Rails and the outputs can sink or source 4mA to within 0.52V of GND and VCC. Propagation delay is 4.5ns (5mV overdrive), while supply current is 5mA per comparator. The MAX961EUA has a shutdown mode in which it consumes only 270μA supply current per comparator. The applications of the MAX961EUA include: Single 3V/5V Systems, Portable/Battery-Powered Systems, Threshold Detectors/Discriminators, GPS Receivers, Line Receivers, Zero-Crossing Detectors, and High-Speed Sampling Circuits.

Parametrics

MAX961EUA absolute maximum ratings: (1)Supply Voltage, VCC to GND: -0.3V to +6V; (2)All Other Pins: -0.3V to (VCC + 0.3V); (3)Duration of Output Short Circuit to GND or VCC: Continuous; (4)Continuous Power Dissipation (TA = +70℃) 5-Pin SOT23 (derate 7.1mW/℃ above +70℃): 571mW/℃; (5)Storage Temperature Range: -65℃ to +160℃; (6)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX961EUA features: (1)Ultra-Fast, 4.5ns Propagation Delay; (2)Ideal for +3V and +5V Single-Supply Applications; (3)Beyond-the-Rails Input Voltage Range; (4)3.5mV Internal Hysteresis for Clean Switching; (5)Output Latch; (6)TTL/CMOS-Compatible Outputs; (7)270μA Shutdown Current per Comparator; (8)Available in Space-Saving Packages: 8-Pin μMAX.
