MAX6692MUA

MAX6692MUA, precise, two-channel digital temperature sensor, MSOP, -0.3V to +6V, 471mW, -1 to 50mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
101 ~ 500 :	0.80 / Piece
501 ~ 1000 :	0.65 / Piece

PartNumber:: MAX6692MUA

Brand:: Maxim Integrated Products - Maxim | Pack: MSOP | D/C: 00+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-24

From Other Seller

Part Number:MAX6692MUA
US $0.65 - 1.00
Quantity:

piece

Product Summary

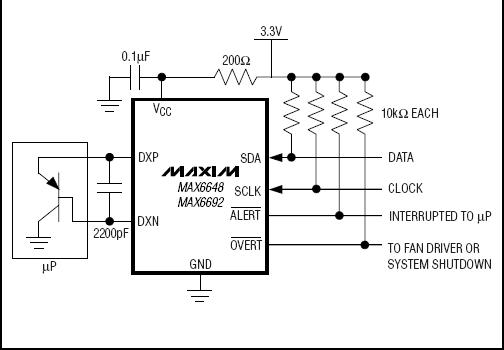

The MAX6692MUA is a precise, two-channel digital temperature sensor. The MAX6692MUA accurately measures the temperature of their own die and a remote PN junction, and report the temperature in digital form using a 2-wire serial interface. The remote PN junction is typically the emitter-base junction of a common-collector PNP on a CPU, FPGA, or ASIC. The applications of the MAX6692MUA include Desktop Computers, Notebook Computers, Servers, Thin Clients, Workstations, Test and Measurement, Multichip Modules.

Parametrics

MAX6692MUA absolute maximum ratings: (1)All Voltages Referenced to GND VCC: -0.3V to +6V; (2)DXP: -0.3V to (VCC + 0.3V); (3)DXN: -0.3V to +0.8V; (4)SCLK, SDA, ALERT, OVERT: -0.3V to +6V; (5)SDA, ALERT, OVERT Current: -1mA to +50mA; (6)DXN Current: ±1mA; (7)Continuous Power Dissipation (TA = +70℃) 8-Pin μMAX (derate 5.9mW/℃ above +70℃): 471mW; (8)8-Pin SO (derate 5.9mW/℃ above +70℃): 471mW; (9)ESD Protection (all pins, Human Body Model): ±2000V; (10)Junction Temperature: +150℃; (11)Operating Temperature Range: -55℃ to +125℃; (12)Storage Temperature Range: -65℃ to +150℃; (13)Lead Temperature (soldering, 10s): +300℃.

Features

MAX6692MUA features: (1)Dual Channel: Measures Remote and Local Temperature; (2)0.125℃ Resolution; (3)High Accuracy: ±0.8℃ (max) from +25℃ to +125℃ (Remote), and ±2℃ (max) from +60℃ to +100℃ (Local); (4)Two Alarm Outputs: ALERT and OVERT; (5)Two Default OVERT Thresholds Available MAX6648: +110℃, MAX6692: +85℃; (6) Programmable Conversion Rate; (7) SMBus-Compatible Interface; (8) SMBus Timeout; (9) Programmable Under/Over temperature Alarm Thresholds.
