MAX3261CCJ

MAX3261CCJ, +5V, 1.25Gbps, laser diode driver, QFP, -0.3V to 6V, 816mW, -2mA to 2mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
101 ~ 500 :	0.80 / Piece
501 ~ 1000 :	0.65 / Piece

PartNumber:: MAX3261CCJ

Brand:: Maxim Integrated Products - Maxim | Pack: QFP | D/C: 02+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-24

From Other Seller

Part Number:MAX3261CCJ
US $0.65 - 1.00
Quantity:

piece

Product Summary

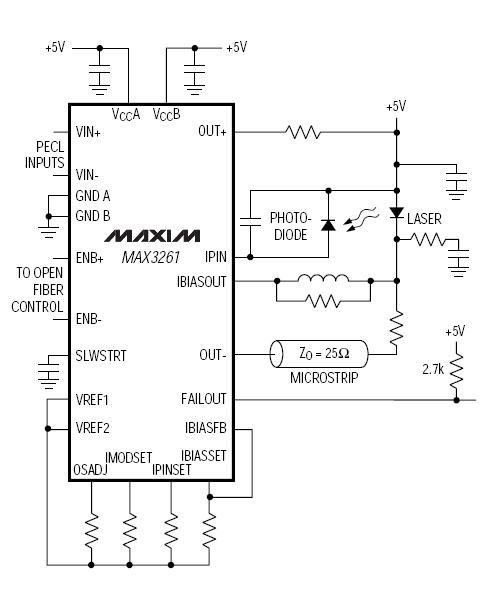

The MAX3261CCJ is a complete, easy-to-program, single +5V-powered, 1.25Gbps laser diode driver with complementary enable inputs and automatic power control (APC). The MAX3261CCJ accepts differential PECL inputs and provides complementary output currents. A temperature stabilized reference voltage is provided to simplify laser current programming. This allows modulation current to be programmed up to 30mA and bias current to be programmed up to 60mA with two external resistors. The applications of the MAX3261CCJ include Laser Diode Transmitters, 531Mbps and 1062Mbps Fibre Channel, 622Mbps SDH/SONET, Gigabit Ethernet.

Parametrics

MAX3261CCJ absolute maximum ratings: (1)Supply Voltages (VCCA, VCCB): -0.3V to 6V; (2)VIN+, VIN-, FAILOUT: 0V to VCC_; (3)OUT+, OUT-, IBIASOUT: 1.5V to VCC_; (4)ENB+, ENB-: VCC_ or 5.5V, whichever is smaller Differential Input Voltage (|VIN+ - VIN-|): 3.8V; (5)IBIASOUT: 0mA to 75mA; (6)OUT+, OUT-: 0mA to 40mA; (7)IBIASSET: 0mA to 1.875mA; (8)IMODSET: 0mA to 2mA; (9)IPIN, IPINSET, OSADJ: 0mA to 2mA; (10)FAILOUT: 0mA to 10mA; (11)IBIASFB: -2mA to 2mA; (12)Output Current VREF1, VREF2: 0mA to 20mA; (13)SLWSTRT: 0mA to 5mA; (14)Continuous Power Dissipation (TA = +70℃) TQFP (derate 10.2mW/℃ above +70℃): 816mW; (15)Operating Temperature Ranges; (16)MAX3261CCJ: 0℃ to +70℃; (17)MAX3261ECJ: -40℃ to +85℃; (18)Junction Temperature: +150℃; (19)Storage Temperature Range: -55℃ to +175℃; (20)Processing Temperature (die): +400℃

Features

MAX3261CCJ features: (1)Rise Times Less than 250ps; (2)Differential PECL Inputs; (3)Single +5V Supply; (4)Automatic Power Control; (5)Temperature-Compensated Reference Voltage; (6)Complementary Enable Inputs.
