MAX191BCWG

MAX191BCWG, monolithic, CMOS, 12-bit, analog-to-digital converter, SOP24, -0.3V to +7V, 100ksps

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
101 ~ 500 :	0.80 / Piece
501 ~ 1000 :	0.65 / Piece

PartNumber:: MAX191BCWG

Brand:: Maxim Integrated Products - Maxim | Pack: | D/C: 00+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-24

From Other Seller

Part Number:MAX191BCWG
US $0.65 - 1.00
Quantity:

piece

Product Summary

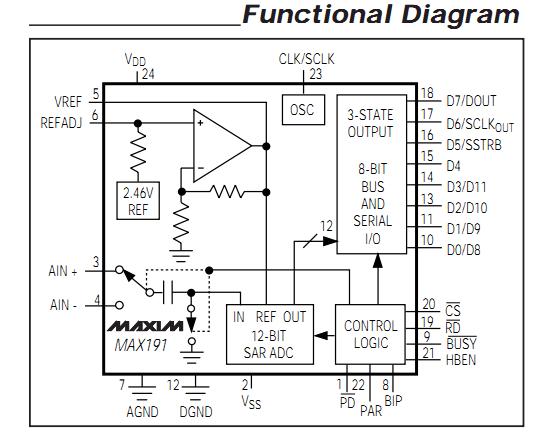

The MAX191BCWG is a monolithic, CMOS, 12-bit analog-to-digital converter (ADC) featuring differential inputs, track/hold (T/H), internal voltage reference, internal or external clock, and parallel or serial μP interface. The MAX191BCWG has a 7.5μs conversion time, a 2μs acquisition time, and a guaranteed 100ksps sample rate. The applications of the MAX191BCWG include Battery-Powered Data Logging, PC Pen Digitizers, High-Accuracy Process Control, Electromechanical Systems, Data-Acquisition Boards for PCs, Automatic Testing Systems, Telecommunications and Digital Signal Processing (DSP).

Parametrics

MAX191BCWG absolute maximum ratings: (1)VDD to DGND: -0.3V to +7V; (2)VSS to AGND: -7V to +0.3V; (3)VDD to VSS: 12V; (4)AGND, VREF, REFADJ to DGND: -0.3V to (VDD + 0.3V); (5)AIN+, AIN-, PD to VSS: -0.3V to (VDD + 0.3V); (6)CS, RD, CLK, BIP, HBEN, PAR, to DGND: -0.3V to (VDD + 0.3V); (7)BUSY, D0–D7 to DGND: -0.3V to (VDD + 0.3V); (8)Continuous Power Dissipation: 1067mW; (9)Operating Temperature Ranges: 0 to +70℃; (10)Storage Temperature Range: -65 to +160℃; (11)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX191BCWG features: (1)12-Bit Resolution, 1/2LSB Linearity; (2)+5V or ±5V Operation; (3)Built-In Track/Hold; (4)Internal Reference with Adjustment Capability; (5)Low Power: 3mA Operating Mode 20μA Power-Down Mode; (6)100ksps Tested Sampling Rate; (7)Serial and 8-Bit Parallel μP Interface; (8)24-Pin Narrow DIP and Wide SO Packages.
