Product Summary
The M21151-33 is a low operating Voltage (±1.0V min.) and low saturation output voltage (±2.0V p-p at supply voltage ± 2.5V) operational amplifier. It is applicable to handy type CD, radio cassete CD, and portable DAT, that are digital audio apparatus which require the 5V single supply operation and high output voltage. The M21151-33 is improved version of the UTC M2100 about BIAS-CIRCUIT. So the M21151-33 is low saturation compared to the UTC M2100 under the condition of low supply voltage(＜ ± 2.5V).The M21151-33 is stable about the oscillation compared to the UTC M2100 under the condition of V+/V- ＞2.5V.
Parametrics
M21151-33 absolute maximum ratings: (1)Supply Voltage V+/V-: ±7.0V; (2)Differential Input Voltage VID: ±14V; (3)Power Dissipation DIP-8: 500mW; (4)SOP-8: 300mW; (5)TSSOP-8: 250mW; (6)Operating Temperature Range Topr: -40 to +85℃; (7)Storage Temperature Range Tstg: -40 to +125℃.
Features
M21151-33 features: (1)Operating Voltage: ±1V to ±7V; (2)Low Saturation Output Voltage: ±2.0Vp-p@V+=±2.5V; (3)Slew Rate: 4V/μs (typ.); (4)Unity Gain Bandwidth: 12MHz (typ.).

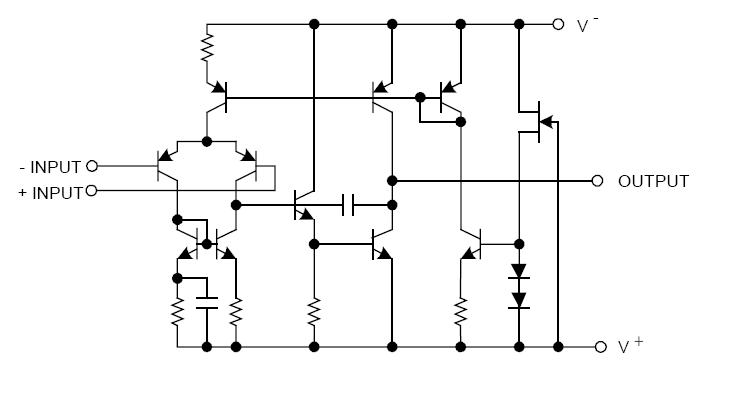

Diagrams
