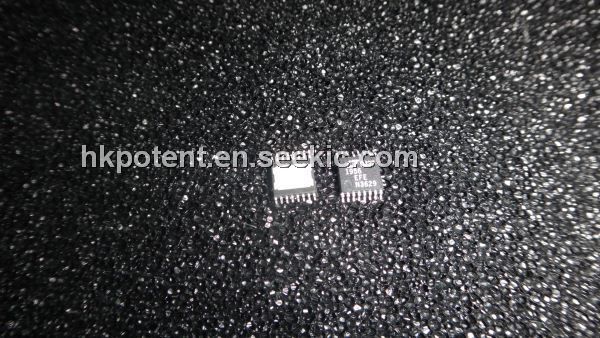

LT1956EFE

LT1956EFE, 1.5A, 500kHz, Step-Down Switching Regulator, TSSOP, 60V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
101 ~ 500 :	0.80 / Piece
501 ~ 1000 :	0.65 / Piece

PartNumber:: LT1956EFE

Brand:: LTN Servotechnik GmbH - LTN | Pack: TSSOP | D/C: 02+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-24

From Other Seller

Part Number:LT1956EFE
US $0.65 - 1.00
Quantity:

piece

Product Summary

The LT1956EFE is a High Voltage, 1.5A, 500kHz Step-Down Switching Regulator. The LT1956EFE is included on the die along with all the necessary oscillator, control and logic circuitry. Current mode architecture provides fast transient response and good loop stability. The applications of the LT1956EFE include High Voltage, Industrial and Automotive, Portable Computers, Battery-Powered Systems, Battery Chargers, Distributed Power Systems.

Parametrics

LT1956EFE absolute maximum ratings: (1)Input Voltage (VIN): 60V; (2)BOOST Pin Above SW: 35V; (3)BOOST Pin Voltage: 68V; (4)SYNC, SENSE Voltage (LT1956-5): 7V; (5)SHDN Voltage: 6V; (6)BIAS Pin Voltage: 30V; (7)FB Pin Voltage/Current (LT1956): 3.5V/2mA; (8)Operating Junction Temperature Range: -40℃ to 125℃; (9)Storage Temperature Range:–65 to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1956EFE features: (1)Wide Input Range: 5.5V to 60V; (2)1.5A Peak Switch Current; (3)Small 16-Pin SSOP or Thermally Enhanced TSSOP Package; (4)Saturating Switch Design: 0.2W; (5)Peak Switch Current Maintained Over Full Duty Cycle Range; (6)Constant 500kHz Switching Frequency; (7)Effective Supply Current: 2.5mA; (8)Shutdown Current: 25mA; (9)1.2V Feedback Reference (LT1956); (10)5V Fixed Output (LT1956-5); (11)Easily Synchronizable; (12)Cycle-by-Cycle Current Limiting.
