Product Summary

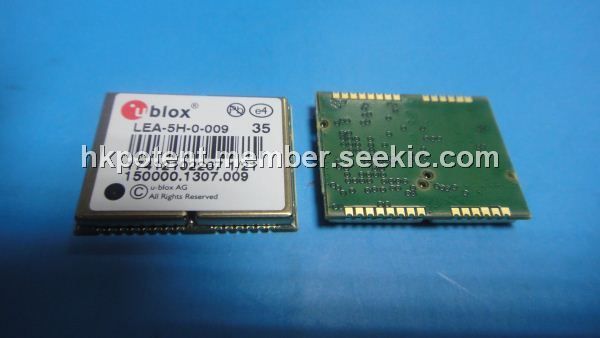

The LEA-5H-0-009 is a stand-alone GPS receiver. The LEA-5H-0-009 features the high performance u-blox 5 positioning engine. The LEA-5H-0-009 features an extensive and flexible range of functionality, connectivity and cost savings options. LEA-5 modules maintain the industry standard 17.0 x 22.4mm form factor of the LEA-4 series and have been designed to allow simple migration. Their ease of integration results in reduced costs and short time to market for a wide range of automotive, consumer and industrial applications.
Parametrics
LEA-5H-0-009 absolute maximum ratings: (1)Power supply voltage (VCC): -0.5V to 3.6V; (2)Backup battery voltage (V_BCKP): -0.5V to 3.6V; (3)USB supply voltage (VDDUSB): 3.8V; (4)Input pin voltage Vin: -0.5V to 3.6V; (5)VCC_RF output current: 100mA; (6)Input power at RF_IN Prfin source impedance = 50Ω, continuous wave: -5dBm; (7)Antenna bias voltage: 6V; (8)Antenna bias current: 100mA; (9)Storage temperature Tstg: -40℃ to 85℃; (10)Maximum ESD Stress Level Applied; according to human body model (100pF; 1.5kΩ): 1500V; (11)Maximum ESD Stress Level Applied; according to machine model; (200pF; 0.75mH): 150V.
Features
LEA-5H-0-009 features: (1)Voltage Range: 2.7V to 3.6V; (2)Thickness: 3mm; (3)Programmable (Flash) FW update: S; (4)UART: 1; (5)USB: 1; (6)SPI: 1.

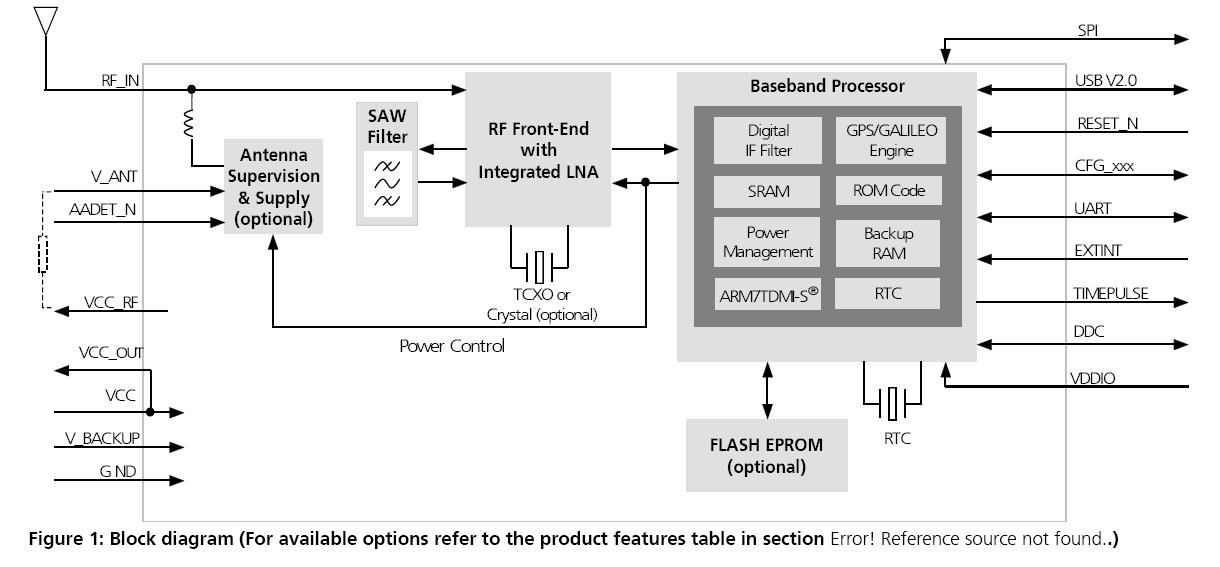

Diagrams
 |
